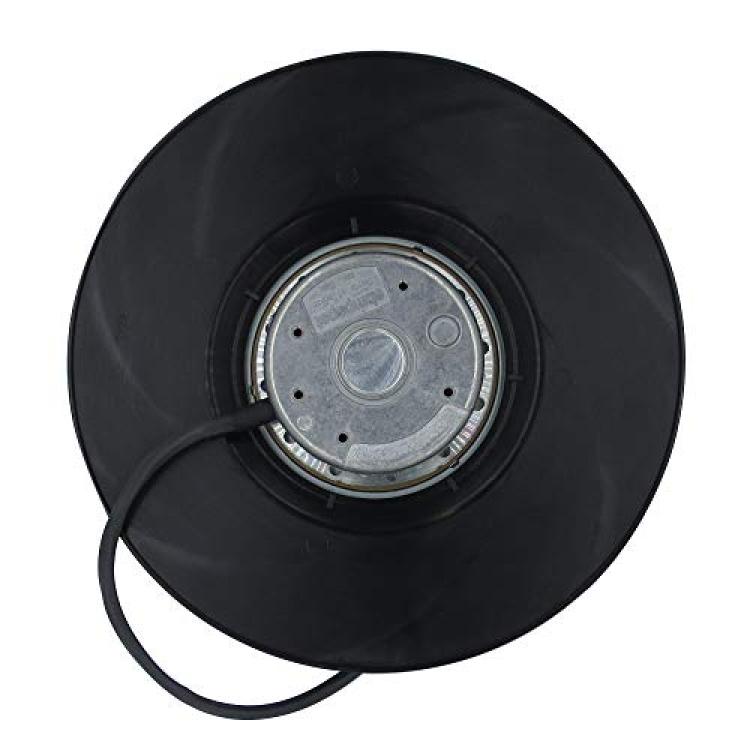

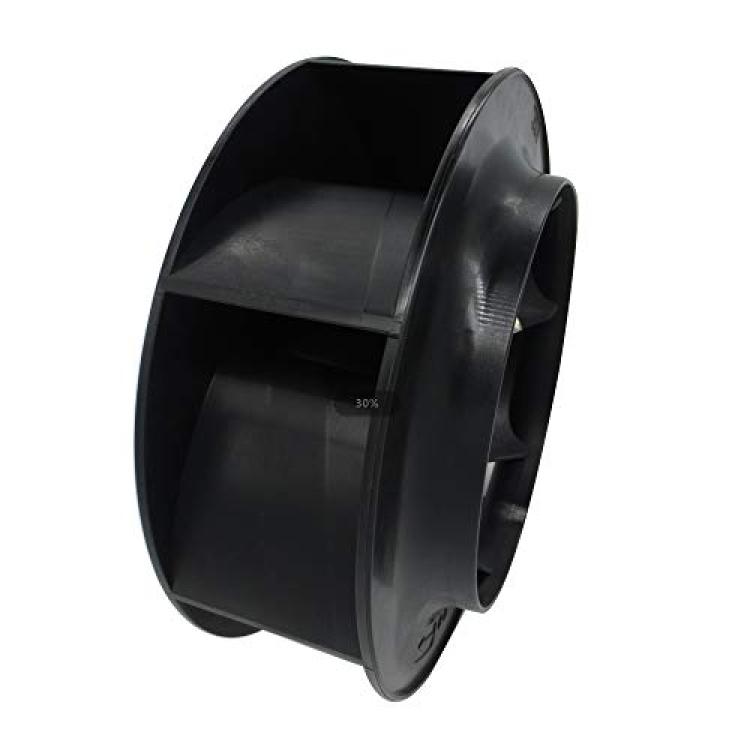

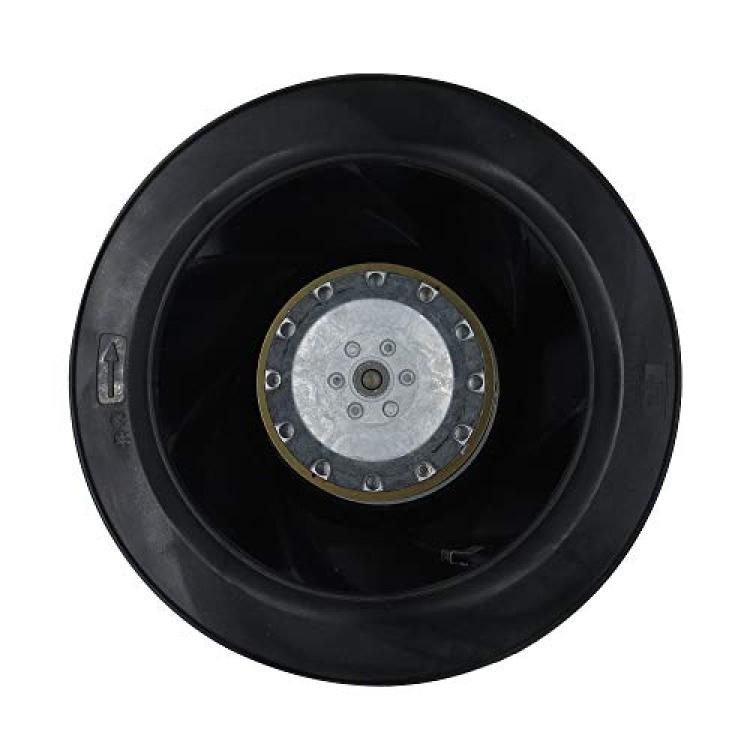

Original New ebmpapst R2D225-AV02-12/R2D225-AV02-15 415VAC 0.26A 120W 2700RPM Size 225mm Motor M2D068-DF for Servo Frequency Converter Cooling Fan

Product Parameter:

Model.R2D225-AV02-15/R2D225-AV02-12
Motor:M2D068-DF
Phase:3
Type:Backward Centrifugal Fan
Brand ebm-papst
Nominal voltage:415VAC
Nominal voltage rang:400~415VAC
Frequency:50/60Hz
Valid for approval:CE
Speed:2700/3000RPM
Power consumption:120/165W
Current draw:0.26/0.27A
Weight:2.2kg
Size:225mm
Motor size:68
Material of impeller:PA6 plastic
Type of protection:IP44
Number of blades:7
Insulation class:B
Motor bearing:Ball bearing
Min. ambient temperature / °C~Max. ambient temperature / °C:-25~60?

Package:

Fan*1
