Jimi Original Surpass High Performance 2814 1050KV 14 Poles Brushless Motor for RC Airplane Fixed-Wing

Use : Vehicles & Remote Control Toys
Brand Name : GOOLSKY
RC Parts & Accs : Motors
Material : Composite Material
Technical parameters : Value 2
Model Number : 1050KV
Four-wheel Drive Attributes : Motors
For Vehicle Type : Airplanes
Tool Supplies : Assembly Category
Remote Control Peripherals/Devices : Motor
Upgrade Parts/Accessories : Motor

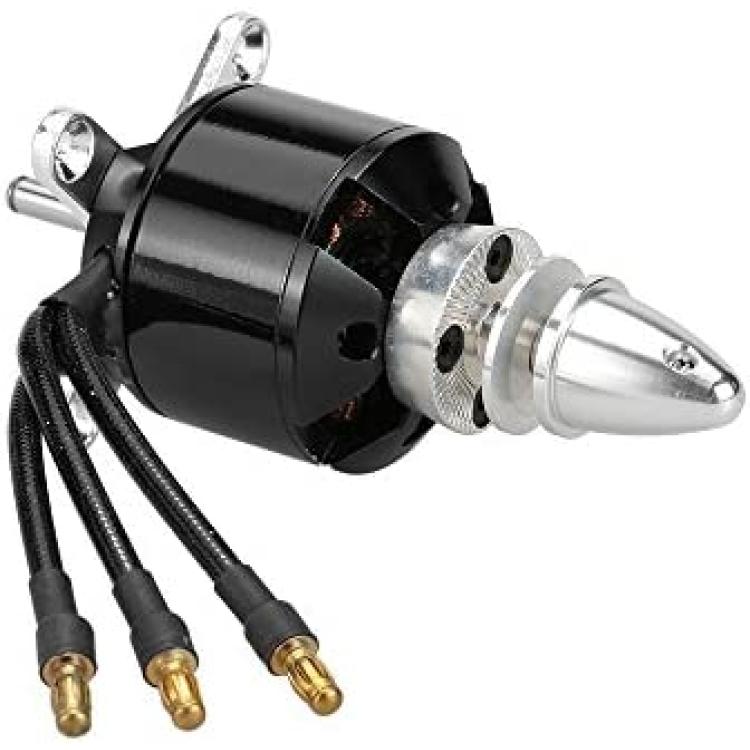

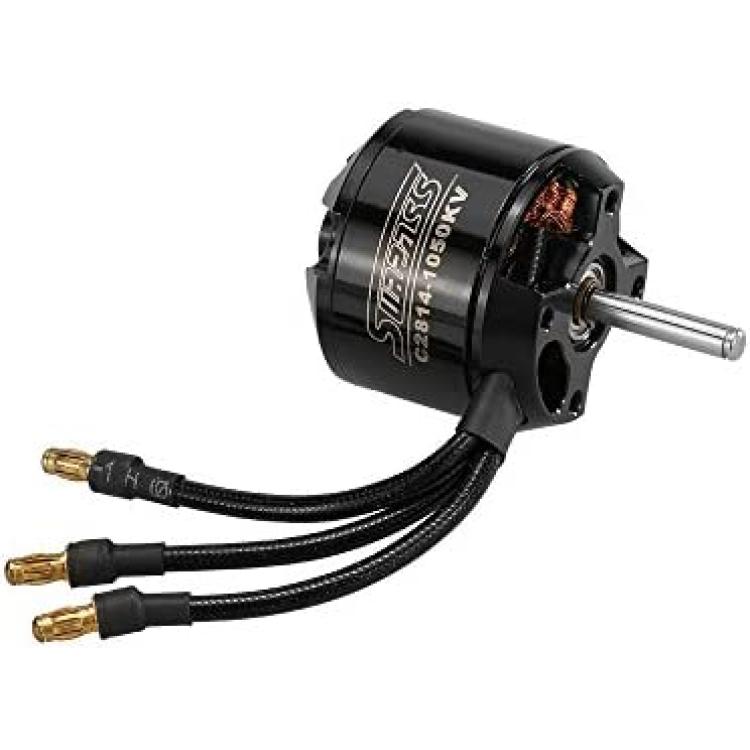

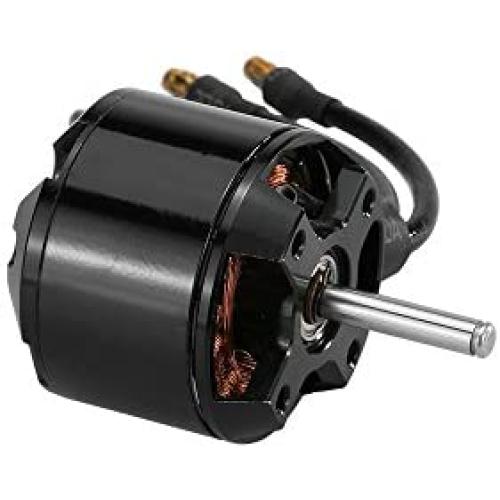

Original SURPASS High Performance 2814 1050KV 14 Poles Brushless Motor for RC Airplane Fixed-wing

The original SURPASS 2814 1050KV brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing.


Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion

Specifications:
Brand name: SURPASS
Item No.: C2814-08
KV(RPM/Volt): 1050KV
Watt: 500W
Voltage range: 7-15V
Max amps: 38A
IO: 1.5A
Resistance: 0.055
Motor size: ?35 * 36mm
Staror size: 2814
Recommended propeller: 9.5 * 5 / 10 * 6 / 11 * 5
Connector: 3.5mm golden banana connector
Weight: 96g

Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 134g / 4.7oz
General box package

Package List:
1 * SURPASS 2814 1050KV Motor
