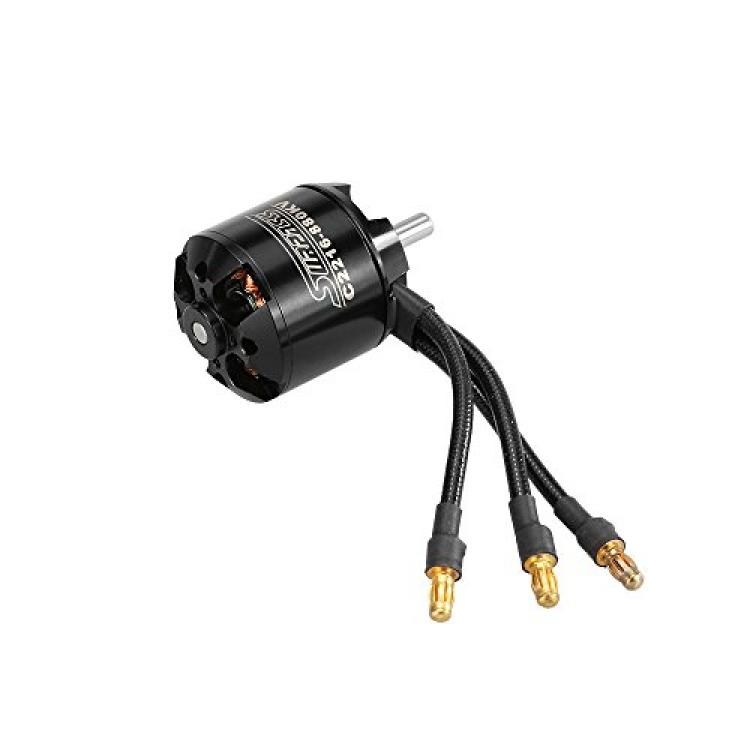

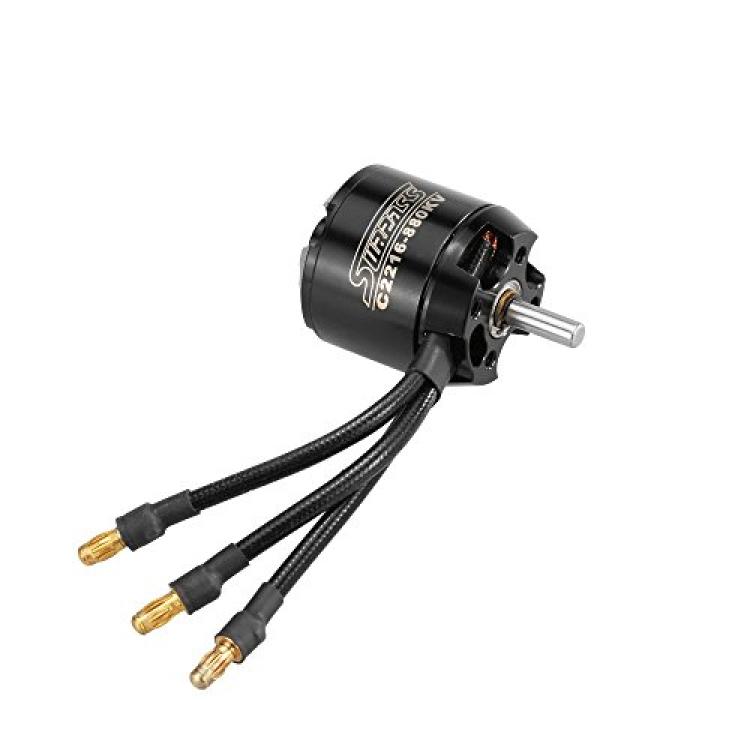

Goolsk SURPASS High Performance 2216 880KV 14 Poles Brushless Motor for RC Airplane Fixed-wing
Availability: Pre-Order, Inquiry Price
About this product
*14 Pole 12 slot hi-torque motor design.
*CNC machined 6061 T6 billet aluminum heatsink can.
*High purity copper windings maximizes efficiency, High RPM ABEC5 oversized bearings.
*Precision balanced rotor, smoothness for best reliability and maximum RPM.
*Stator-super thin (0.2mm) laminations, Precision engineered for maximum energy conversion.
Description
 Features:
 14 Pole 12 slot hi-torque motor design.
 CNC machined 6061 T6 billet aluminum heatsink can.
 High purity copper windings maximizes efficiency.
 High RPM ABEC5 oversized bearings.
 Precision balanced rotor, smoothness for best reliability and maximum RPM.
 Stator-super thin (0.2mm) laminations.
 Precision engineered for maximum energy conversion.

 Specifications:
 Item No.: C2216-10
 KV(RPM/Volt): 880KV
 Watt: 340W
 Voltage range: 7-18V
 Max amps: 22A
 IO: 0.8A
 Resistance: 0.108
 Motor size:Ø28 * 34mm
 Stator size: 2216
 Recommended propeller: 11 * 8.5 / 10 * 7 / 12 * 6
 Connector: 3.5mm golden banana connector
 Weight: 67g

 Package Information:
 Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
 Package weight: 98g / 3.5oz
 General box package

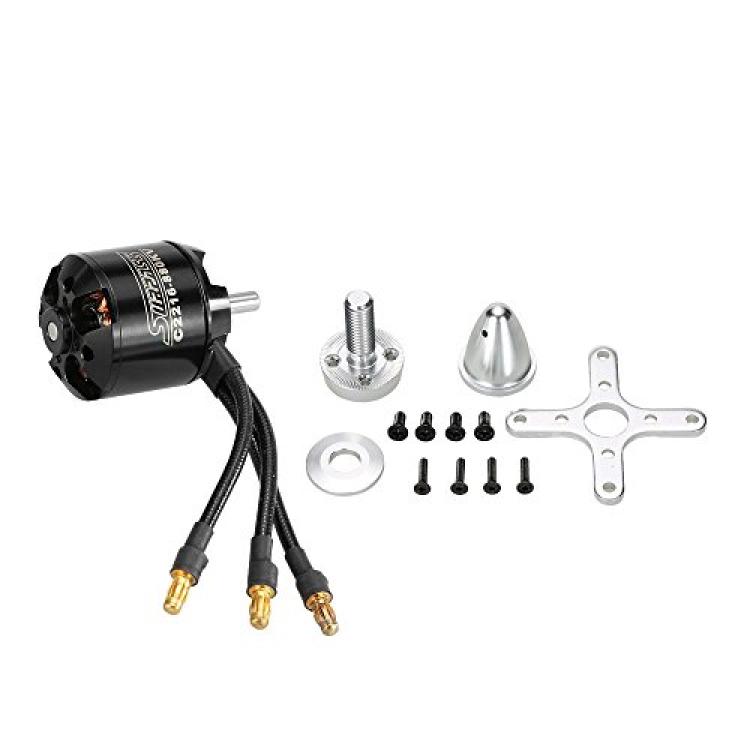

 Package List:
 1 * SURPASS 2216 880KV Motor
