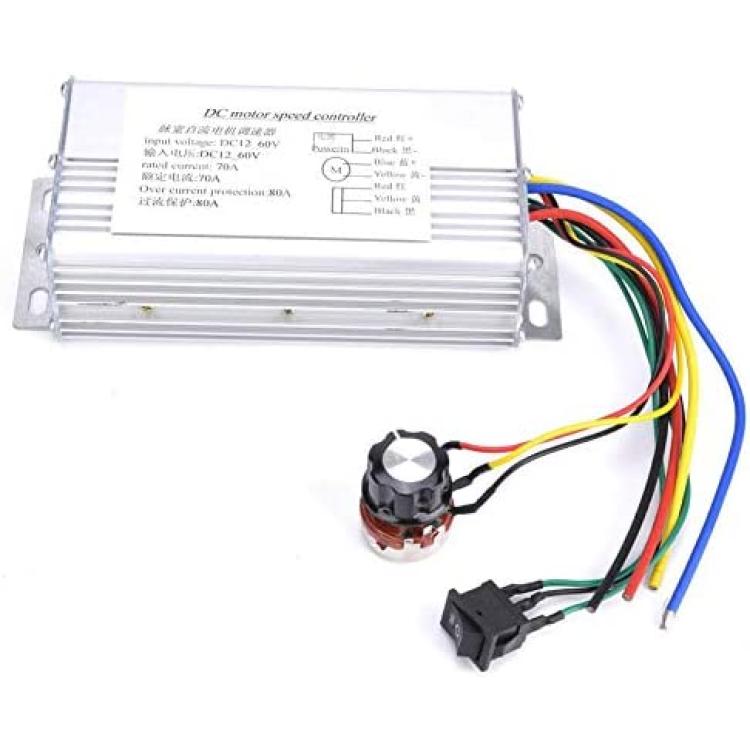

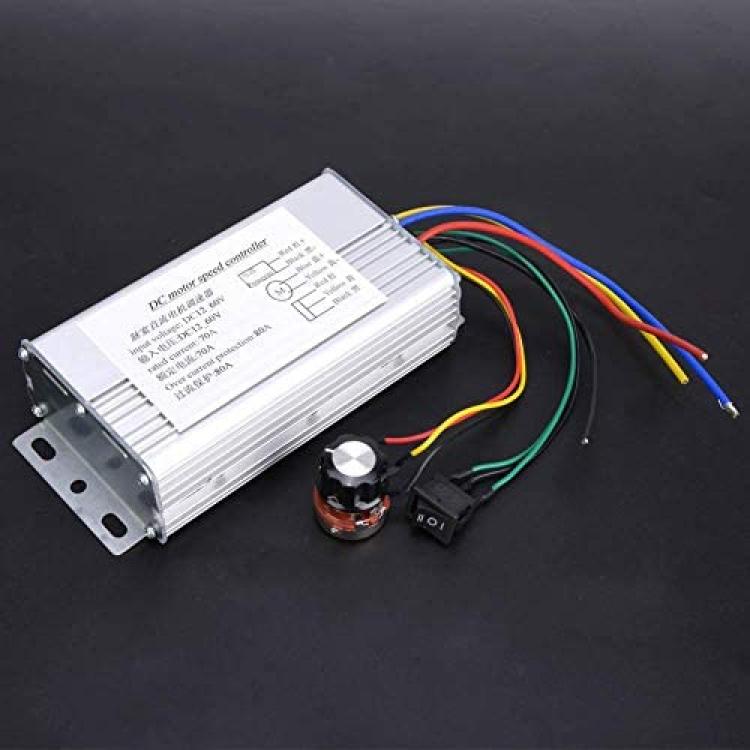

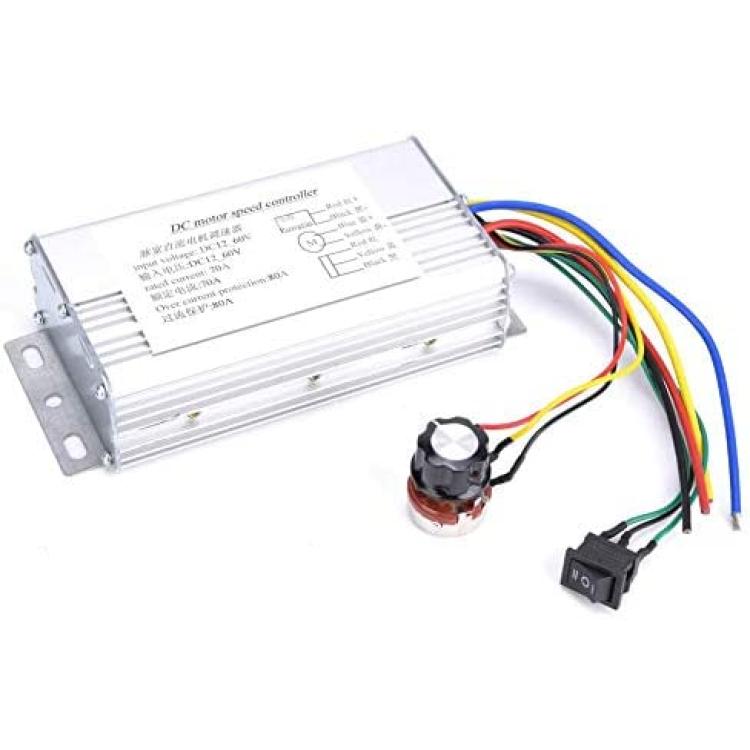

PWM Motor Speed Controller, 12V-60V 70A DC Speed Regulator with Forward/Reverse Bidirectional Rotation
About this product
*HIGH QUALITY: The DC governor is made of high quality circuit board, with long service life, low heat generation, high efficiency and large torque.
*POSITIVE AND NEGATIVE TWO-WAY ROTATION: The motor speed controller adopts PWM speed regulation, which is accurate and stable, and supports forward/reverse control.

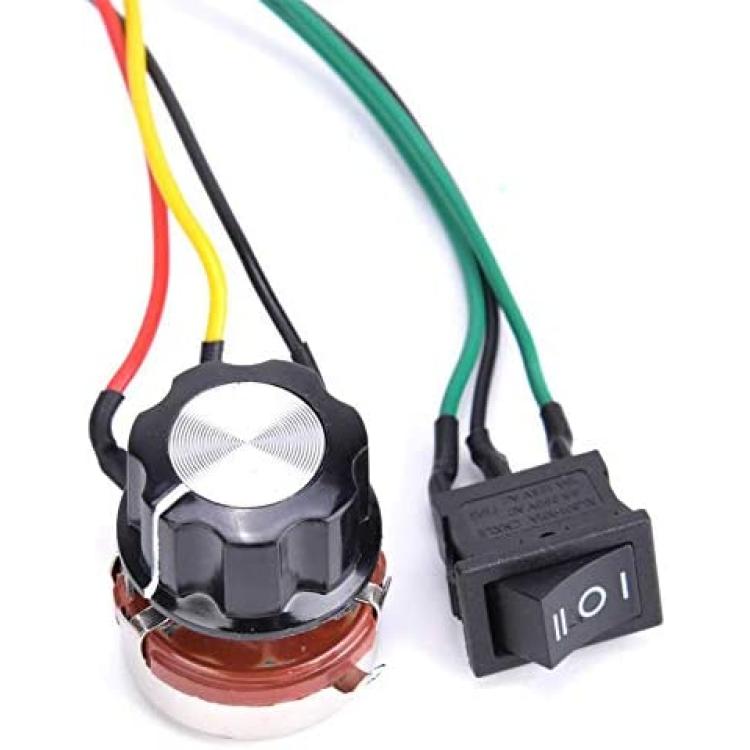

*SPEED CONTROL: The speed control mode of the motor speed controller adopts potentiometer control and 270 degree potentiometer speed control mode.
*IMPORTANT PARAMETERS: output voltage: linear load; output current: 80A; continuous current: 70A; working voltage: 12V-60V.
*NOTE: The red line indicates the positive pole of the power supply, the negative line of the black Lineis power supply, and the blue and yellow wires are connected to the motor. The positive and negative poles cannot be distinguished.
Description
Specification:
Condition: 100% Brand New
Item Type: PWM Motor Speed Controller
Working Voltage: 12V-60V
Output Voltage: Linear Under Load
Output Current: 80A
Continuous Current: 70A
Speed Range: 0% - 100%
Forward Rotation Reverse: Yes
Speed Control Mode: Potentiometer (270 Degrees)

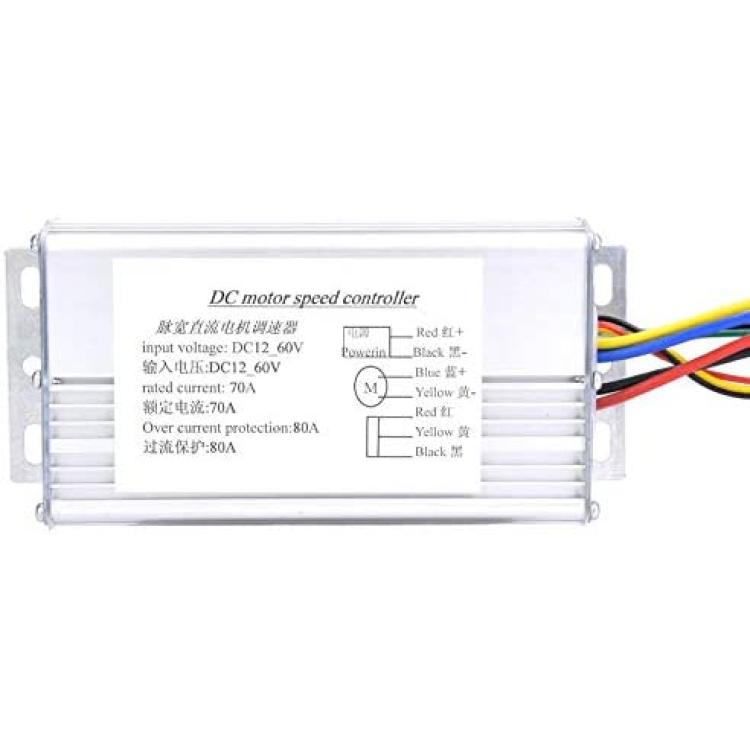

Wiring:
Red line is power supply positive
Black lineis power supply negative
Blue and yellow wires are wired for the motor, not distinguish between the positive and negative poles.
Package List:
1 x PWM Motor Speed Controller
