DC Motor Speed Controller,10V-55V , Controllers Motor Speed Controllers Brush Motor PWM Forward Reverse Rotation Switch Controller
Availability: Pre-Order, Inquiry Price
About this product
*Parameter:Output Voltage: Linear Under Load,Maximum Current: 60A,Continuous Current: 40A,Control Frequency: 15KHZ,Speed Control Mode: Potentiometer (With Switch),Support Motor: DC Brush,Wiring Type: Screw Terminal,Size:100 x 76 x 28mm / 3.94 x 2.99 x 1.1in .
*Digital display PWM DC motor speed controller shows speeds from 0 to 100, intuitive and clear.
*The DC motor speed controller supports forward and reverse control through lockless switches. Speed control range is 0 ~ 100%, which can be adjusted by current.
*The input voltage must be equal to the rated voltage of the motor and must be divided into positive and negative voltages.
*We strive to provide you with high quality and convenient service. You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.
Description
Specification:
Item Type:DC Motor Controller
Input Voltage: 10V-55V
Output Voltage: Linear Under Load
Maximum Current: 60A
Continuous Current: 40A
Speed Range: 0% ~ 100%
Control Frequency: 15KHZ

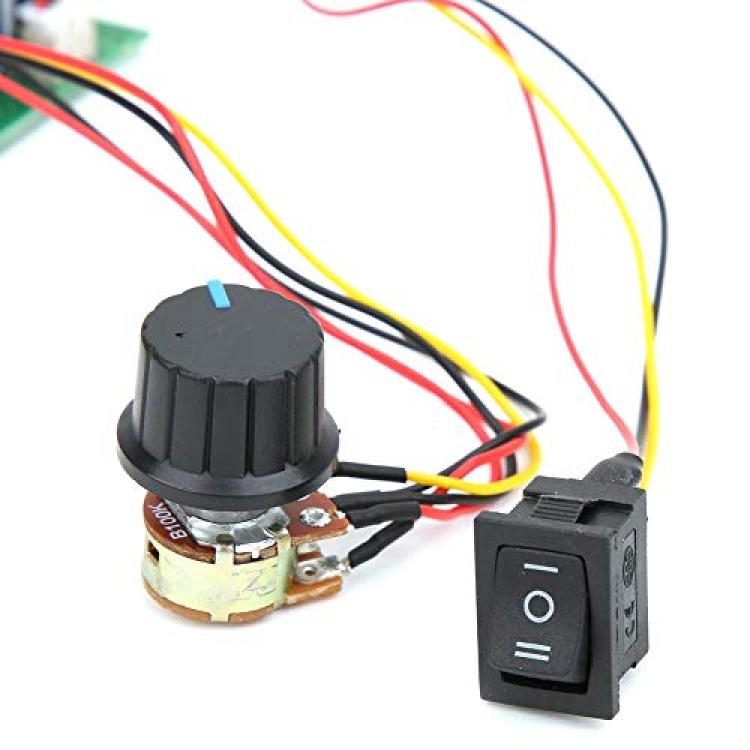

Speed Control Mode: Potentiometer (With Switch)
Speed Type:Current Adjustment
Forward Rotation Reverse: Support (No Lock Switch)
Digital Positioning: 0-100% (Full Speed Percentage)
Support Motor: DC Brush

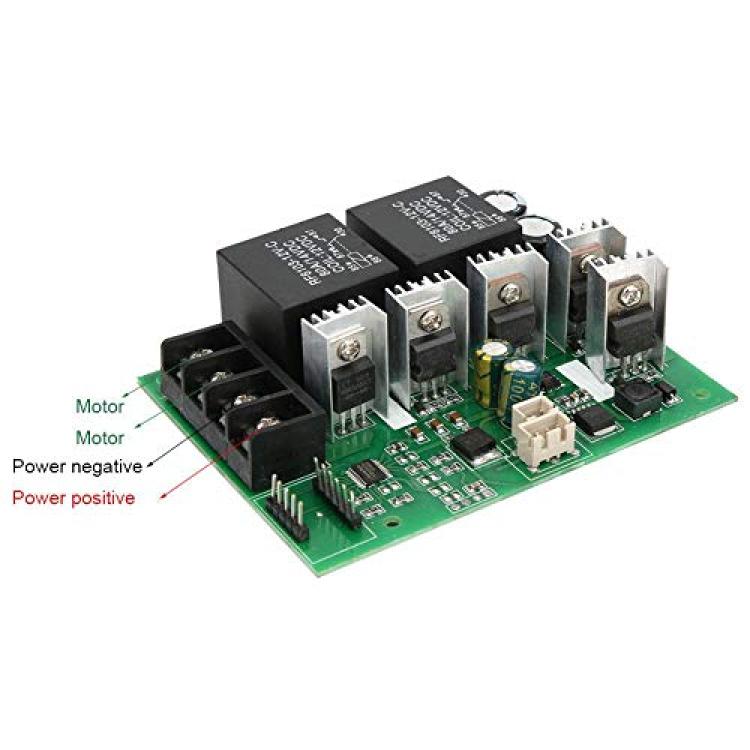

Wiring Type: Screw Terminal
Size:100 x 76 x 28mm / 3.94 x 2.99 x 1.1inÂ
Weight: 170 g / 6 oz(approx.)
Package List:
1 x Motor Controller
Note:
The digital display only shows 0-100 as the motor full speed percentage.
