5V - 24V Motor Forward/Reverse Controller Timing Delay Time Cycles Relay Motor Controller Board
Availability: Pre-Order, Inquiry Price
About this product
*HIGH QUALITY: Speed controller is made with high quality circuit board which ensures a longer service life.
*HIGH QUALITY: Speed controller is made with high quality circuit board which ensures a longer service life.
*GOOD FEATURE: It has two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode

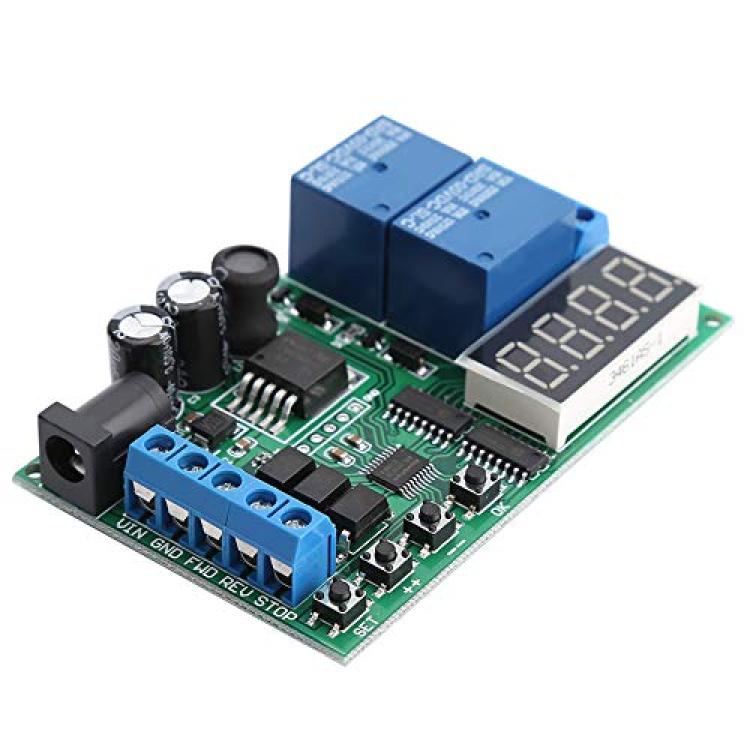

*EXQUISITE DESIGN: There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP).
*VOLTAGE: Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
Description
Specification:
Power supply: DC 6.5-25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current: <5A
Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes

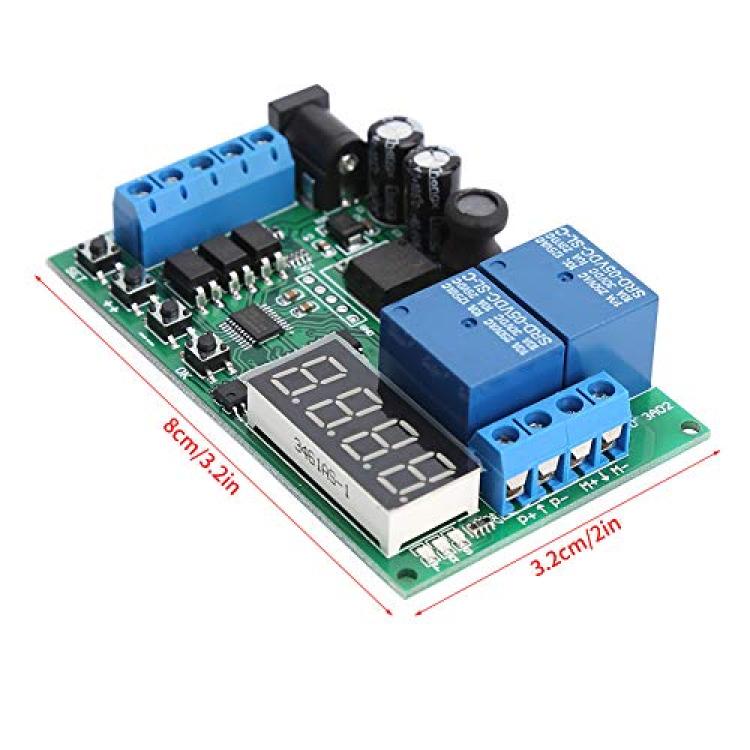

Size: 8*5cm/3.2*2in
Weight: Approx. 51g/1.8oz
Trigger mode:Â
1 low pulse trigger (falling edge trigger)
2 low level trigger (rising edge trigger)
Package list:
1 x Motor Controller board
