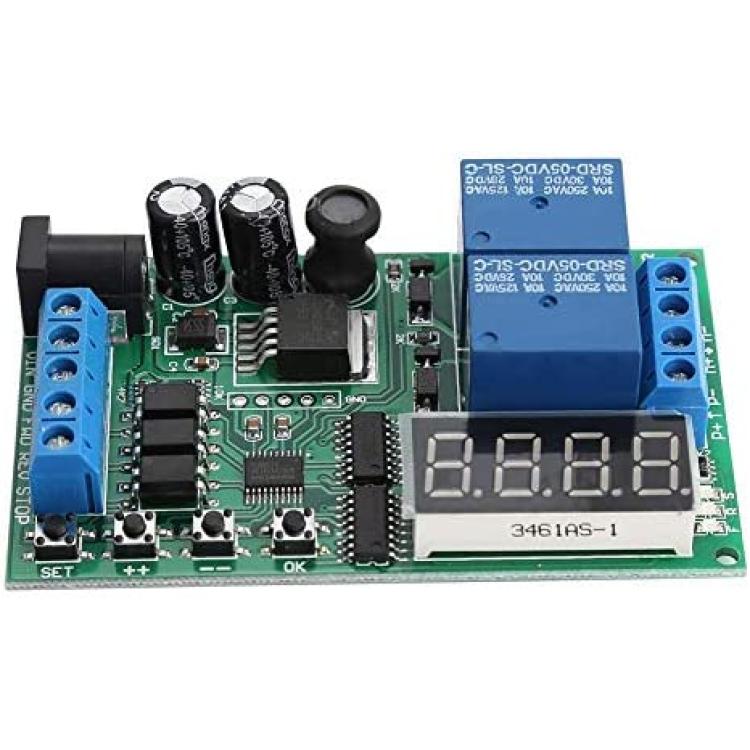

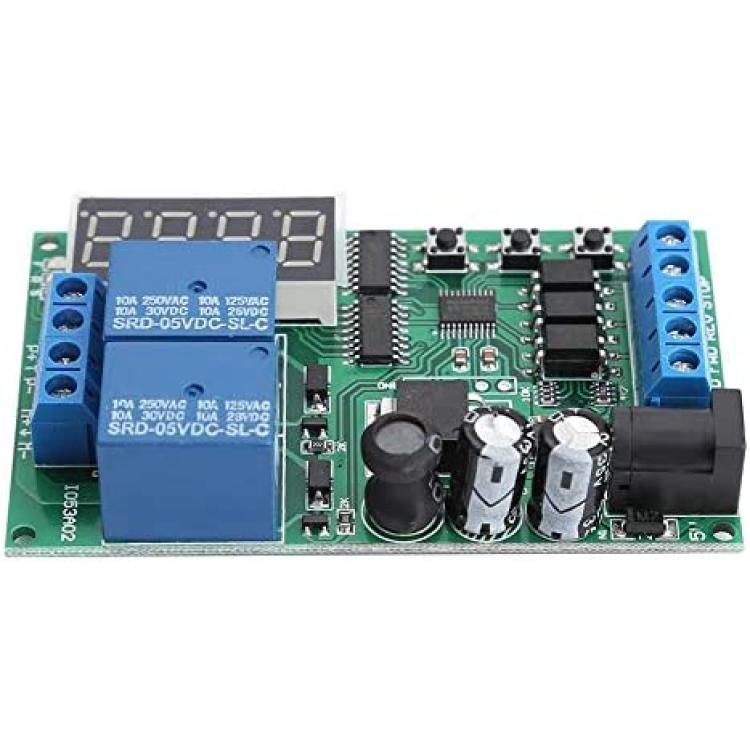

Dc Motor, Motor Controller Delaman 5V - 24V Motor Forward/Reverse Controller Timing Delay Time Cycles Relay
About this product
*This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
*Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
*Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. Relay load current, recommended less than 5A.
*There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP). Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode. Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).
*Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes. Cycle times: no cycle, 2-99 cycles, always cycle.
Description
Port:
DC 5.5MM female : Power supply 1, DC 5V power supply.
VIN: Power 2 positive, DC 6.5-25V power supply
GND: Power supply 2 negative
FWD: Forward input control (partial Function-Mode is invalid)
REV: Reverse input control (partial Function-Mode is invalid)
STOP : Stop input control (partial Function-Mode is invalid)
M+: Motor positive
M-: Motor negative
P+: Positive terminal for motor power supply
P-: negative terminal for motor power supply
Specification:
Power supply: DC 6.5-25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current: <;5A
Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes
Size: 8*5cm/3.2*2in
Weight: Approx. 51g/1.8oz
Trigger mode:
1 low pulse trigger (falling edge trigger)
2 low level trigger (rising edge trigger)
Timer:
T1: Forward timer
T2: Reverse timer
T3: Stop timer
Time unit : 0.1 second, 1 second, 1 minute
Relay action:
Motor forward : Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing.
Motor reverse : Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing..
Motor stop : Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing.
Factory settings:
Press the "++" and "--" buttons simultaneously for 5 seconds.
Energy-saving mode:
Press and hold the "OK" button for 5 seconds to enter the "Energy-saving mode". Press and hold the "OK" button again for 5 seconds to exit the "Energy-saving mode". Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal.
Function mode:
F-01
After power-on, the motor is forward T1 time; then the motor stops T3 time; then the motor reverse T2 time; so it is repeated Nx times. When the STOP port is triggered, the motor st
