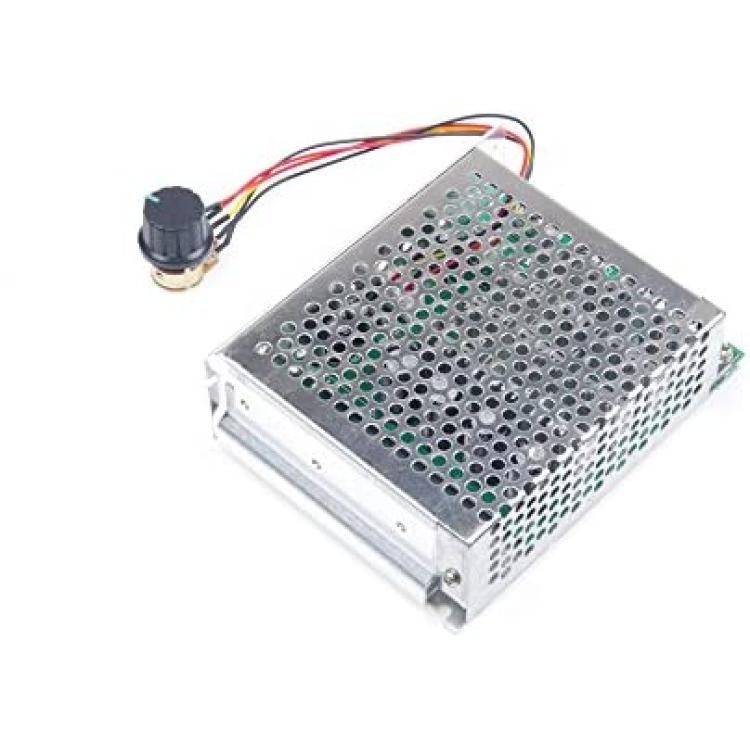

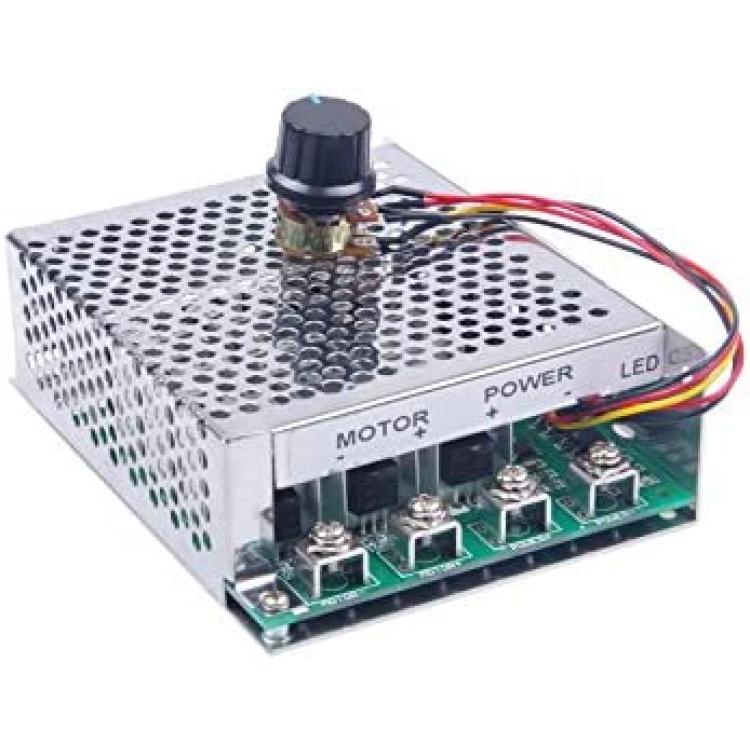

KNACRO 12V 24V 36V 48V 60A Stepless DC Motor Speed Controller Forward Reverse Controller Digital Display Governor Switch Metal Shell Case
About this product
*Input voltage: DC9-55V.Output voltage: Load Linear.
*Input Current: require large than the motor operating current.Output Current: determine load size.Continuous current: 60A within.
*Maximum power: 3300W.Knob hole: 7mm.
*Speed type: modulated current.Speed mode: ON OFF linear potentiometer 270 degrees.Speed range: 0-100%.
*Operating frequency: 15KHZ.Terminal Type: Pressure riveting line terminal.
Description
Input voltage: DC9-55V.Output voltage: Load Linear.
Input Current: require large than the motor operating current.Output Current: determine load size.Continuous current: 60A within.
Maximum power: 3300W.Knob hole: 7mm.
Speed type: modulated current.Speed mode: ON \ OFF linear potentiometer 270 degrees.Speed range: 0-100%.
Operating frequency: 15KHZ.Terminal Type: Pressure riveting line terminal.
Input voltage: DC9-55V.
Output voltage: Load Linear.
Input Current: require large than the motor operating current.
Output Current: determine load size.
Continuous current: 60A within.
Maximum power: 3300W.
Knob hole: 7mm.
Speed type: modulated current.
Speed mode: ON \ OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 15KHZ.
Terminal Type: Pressure riveting line terminal.
Size: 128 * 98 * 40mm(L*W*H).
Weight: 275g.
