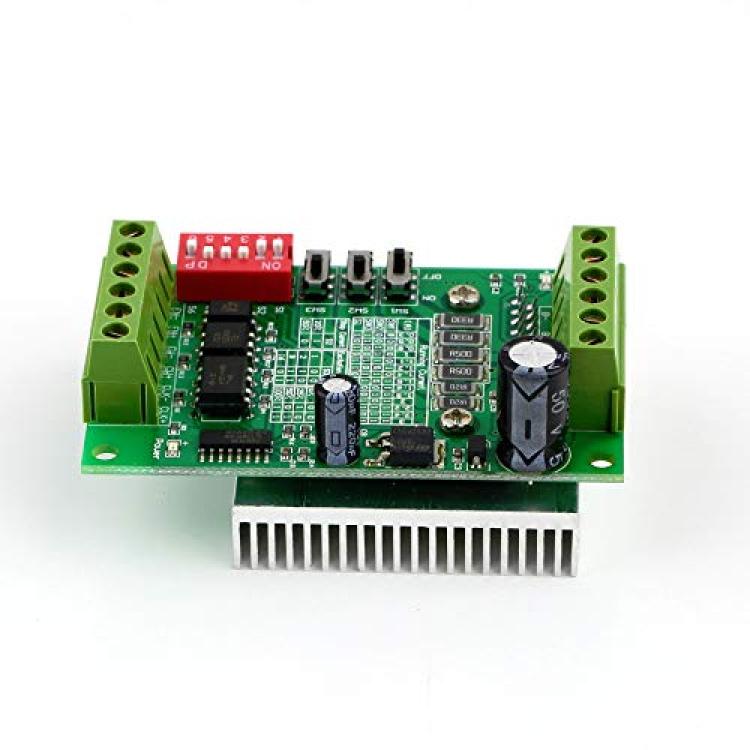

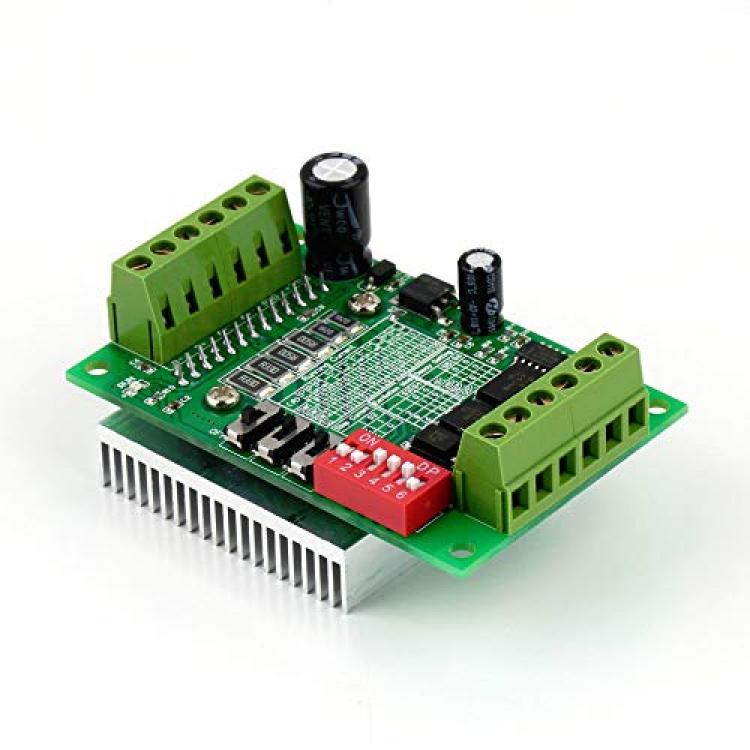

Hailege TB6560 3A CNC Router Single 1 Axis Controller Stepper Motor Driver Module
Availability: Pre-Order, Inquiry Price
About this product
*Working voltage: DC 10-35V; Rated maximum output: ± 3A, peak 3.5A.
*TB6560 3A CNC Router Single 1 Axis Controller Stepper Motor Driver Module
*Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent
*Working voltage: DC 10-35V; Rated maximum output: ± 3A, peak 3.5A.
*TB6560 3A CNC Router Single 1 Axis Controller Stepper Motor Driver Module
Description
Description:
Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
6N137 high-speed optical coupling, guarantee high speed without losing step.
Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent
protection circuit to ensure optimal performance.Rated maximum output: ± 3A, peak 3.5A.
For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.Automatic half current function.
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.
Specifications:
Working voltage:DC 10-35V
Rated maximum output: ± 3A, peak 3.5A.
Main color:Green
Size:75 x 50 x 33mm
Net weight:83g
Package included:
1x TB6560 3A CNC Router Single 1 Axis Stepper Motor Controller
