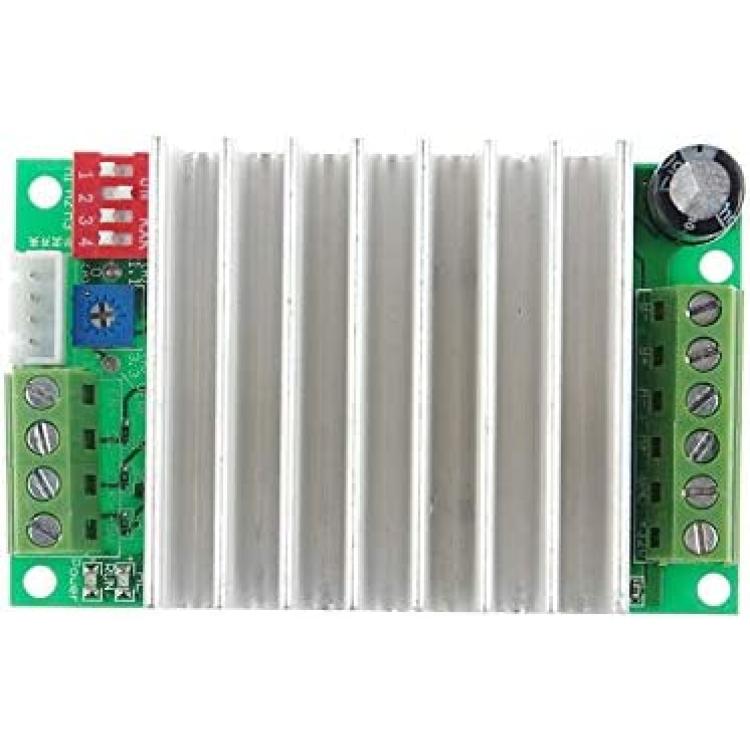

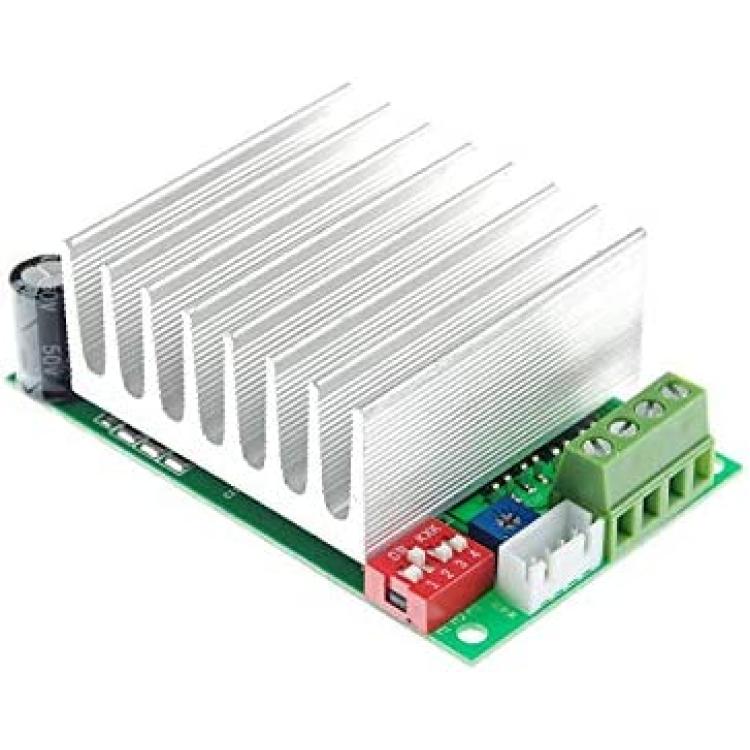

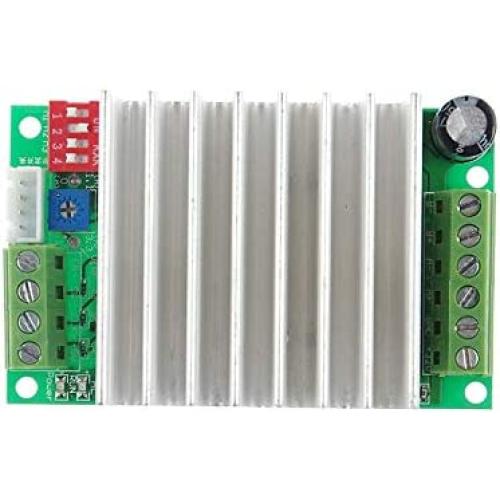

HiLetgo 4.5A TB6600 TB6600HG Single Axis Stepper Motor Driver Controller Replace TB6560

Descriptions:
*Operating voltage: DC 10V-45V.
*It is recommended to use DC32V power supply switch power supply.
*The use of high-speed optical coupling 6N137, ensure high speed without losing step.
*The use of high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
*Rated maximum output reached: ¡À 4.5A.
*4.2A of 42,57,86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor.
*Automatic half current function.
*Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
*Size: 82mm * 50mm * 35mm (L * W * H)
Product Features:
*Output current stepless adjustable to meet your various application requirements.
*Automatic half current function. And a semi-automatic flow switch, easy to use.
*The use of high-speed optical coupling 6N137, ensure high speed without losing step.

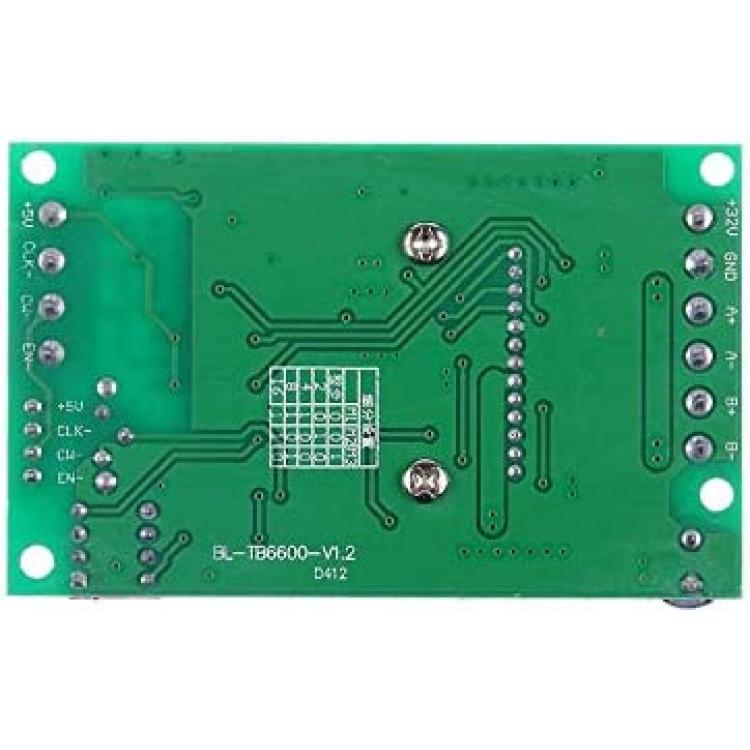

*Printed on the back panel are subdivided setup instructions.

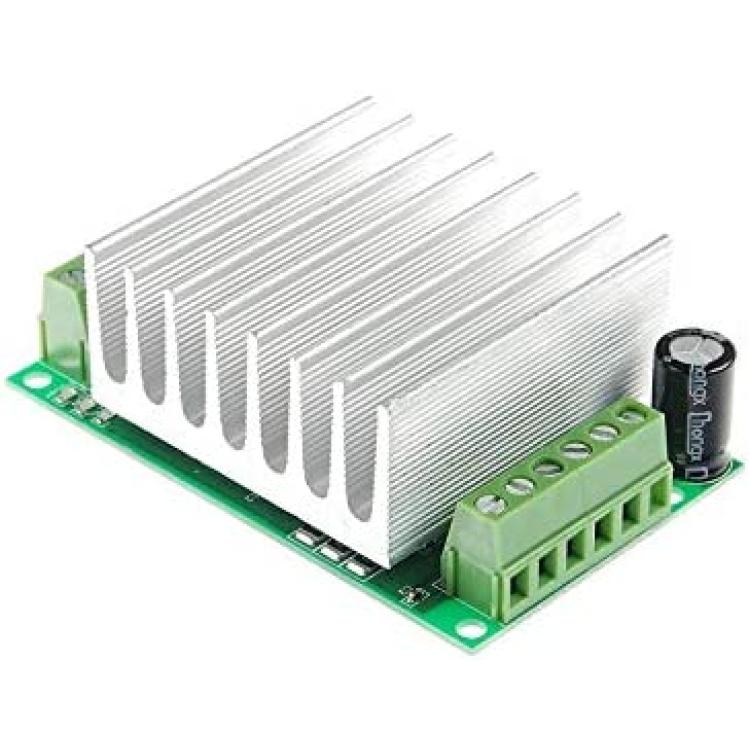

*Used to increase the heat sink, good heat dissipation.
*Output short-circuit protection, the use of mind.
*Using common anode input mode, there are two input terminals, wiring more convenient.
Specifications:
Operating voltage: DC 10V-45V.
It is recommended to use DC32V power supply switch power supply.
The use of high-speed optical coupling 6N137, ensure high speed without losing step.
Rated maximum output reached: ¡À 4.5A.
Package included:
1 * TB6600 TB6600HG Single Axis Stepper Motor Driver Controller Module
