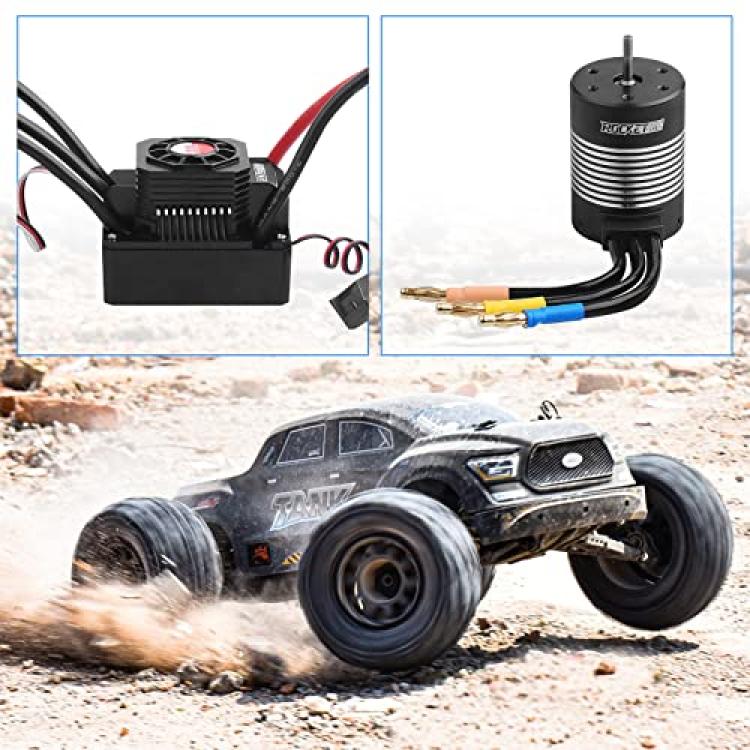

3650 5900KV Sensorless Brushless RC Motor 120A Brushless ESC & Program Card Set Waterproof Motor ESC Combo 3.175mm Shaft Motor for 1:10 Scale RC Car Truck Update Parts

3650 5900KV Sensorless Brushless RC Motor 120A Brushless ESC & Program Card Set Waterproof Motor ESC Combo 3.175mm Shaft Motor for 1:10 Scale RC Car Truck Update Parts

Features:

Water-proof Motor:
?4Pole 12 Slot Hi-torque Motor Design
?High Purity CopperWindings Maximizes Efficiency
?High RPM ABEC5 Oversized Bearings
?Precision balanced rotor, removable/replaceable rotor
?Specially designed for 1/10 1/8 rc car, waterproof,a good choice for your rc car.
Water-proof ESC:
?Specially designed for RC car, water-proof and dust-proof for all-weather races.
?Excellent start-up, acceleration and linearity features.
?The strong resistant current capability, excellent heat dissipation.
?Multiple protection features, widely compatible with for 1/10 1/8 RC car

Specifications:
Motor:
Watts: 900W
Max voltage: 9.6V Max Amps: 94A
KV(RPM/Volt): 5900KV
Max RPM: 50000
Plug type: 4mm golden banana plug
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Weight: 180g

ESC:
Cont/Burst Current: 120A/600A
Motor Type: Sensorless brushless motor
Suitable brushless motor: ?3.5T
Resistance: 0.00035ohm
Battery: 2-6cells Lipo/ 4-18cells NiMH
BEC Output: 6.1V/3A(switch mode)
Diamension:41 X 51 X 36mm (1.61 x 2 x 1.42in)

Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.
7. The ESC is workable.
8. Troubleshooting,please read product manual(ESC)

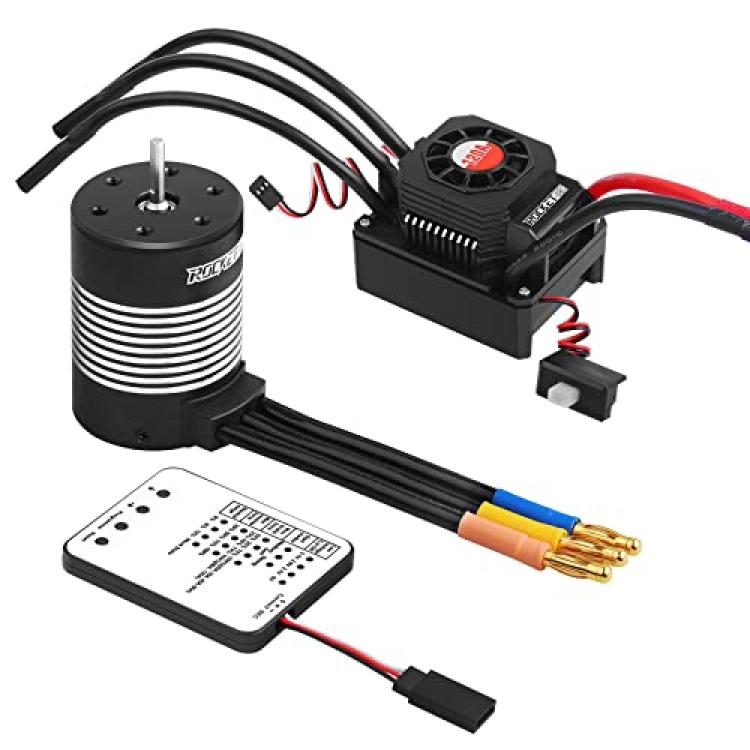

Package Including
1 X 3650 5900KV Sensorless Brushless Motor
1 X 120A ESC
1 X Programming Card
2 X Product manual
