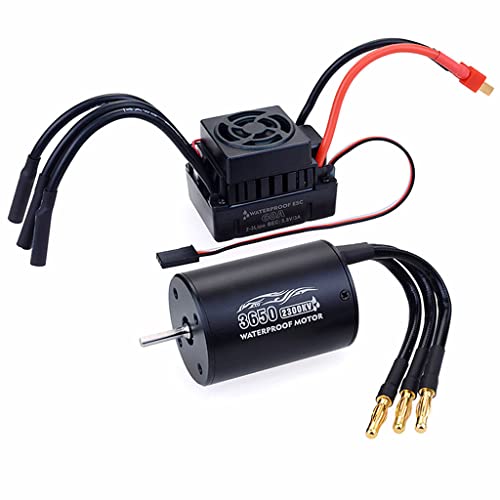

Brushless Motor 3650 2300KV and 60A ESC Combo Set Primary Sensorless Motor 5.8V / 3A Waterproof ESC for 1/10 RC Car

Brushless Motor 3650 2300KV and 60A ESC Combo Set

Features:

Water-proof Motor:
?High Purity CopperWindings Maximizes Efficiency
?High RPM ABEC5 Oversized Bearings
?Precision balanced rotor, removable/replaceable rotor
?Specially designed for 1/10 rc car, waterproof,a good choice for your rc car.
Water-proof ESC:
?Specially designed for RC car, water-proof and dust-proof for all-weather races.
?Excellent start-up, acceleration and linearity features.
?The strong resistant current capability, excellent heat dissipation.
?Multiple protection features, widely compatible with for 1/10 RC car
Notice
This 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S Battery or above 3S battery to avoid short circuit!!

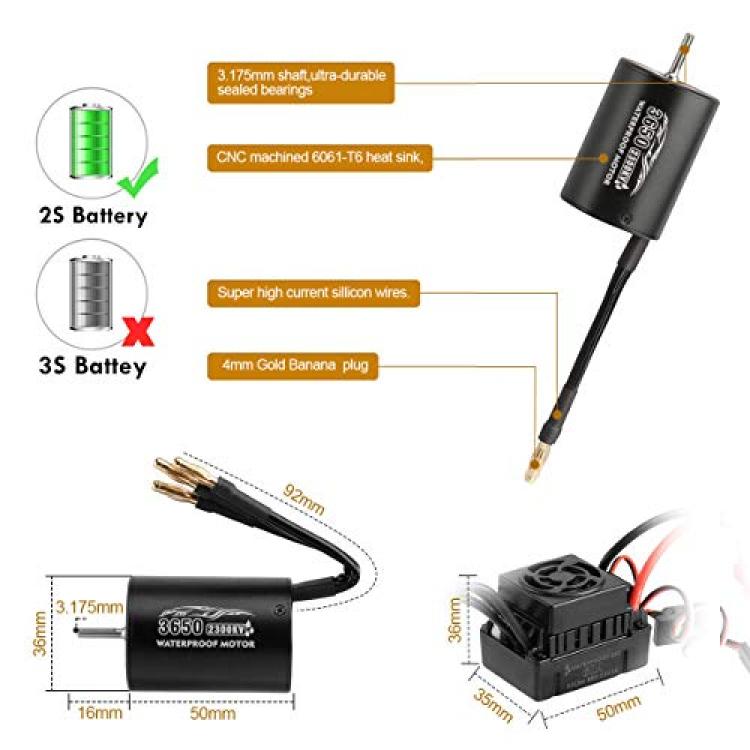

Specifications:
Motor:
Watts: 900W
Max voltage: <22V Max Amps: 41A
KV(RPM/Volt): 2300KV
Max RPM: 50000
Plug type: 4mm golden banana plug
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Weight: 180g

ESC:
Cont/Burst Current: 60A/320A
Motor Type: Sensorless brushless motor
Suitable brushless motor: ?9T
Resistance: 0.0007ohm
Battery: 2-3cells Lipo/ 4-9cells NiMH
BEC Output: 5.8V/3A(switch mode)
Diamension:50 X 35 X 36mm (1.97 x 1.38 x 1.38in)

Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.
7. The ESC is workable.
8. please read product manual(ESC)

Package
1 X 3650 2300KV Brushless Motor
1 X 60A ESC
2 X product manual
