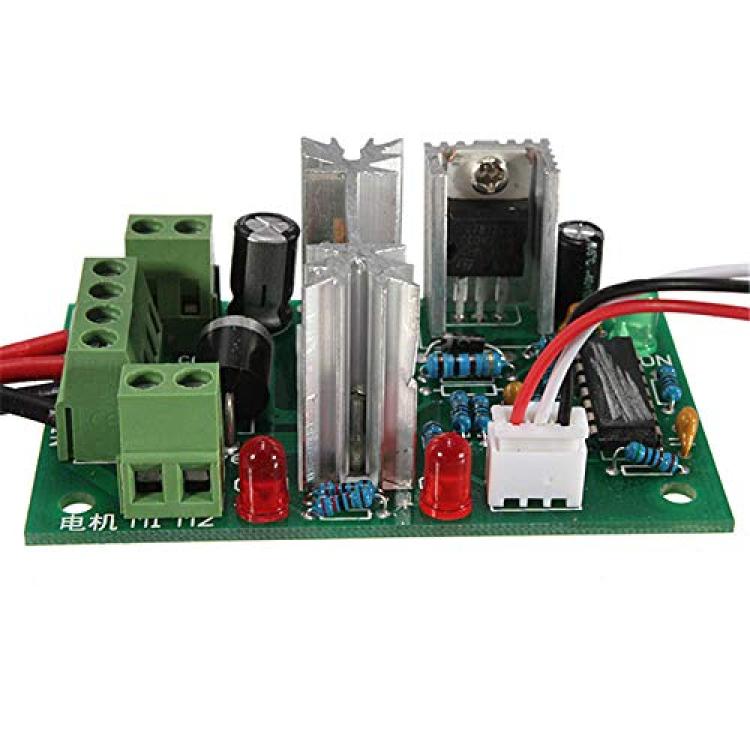

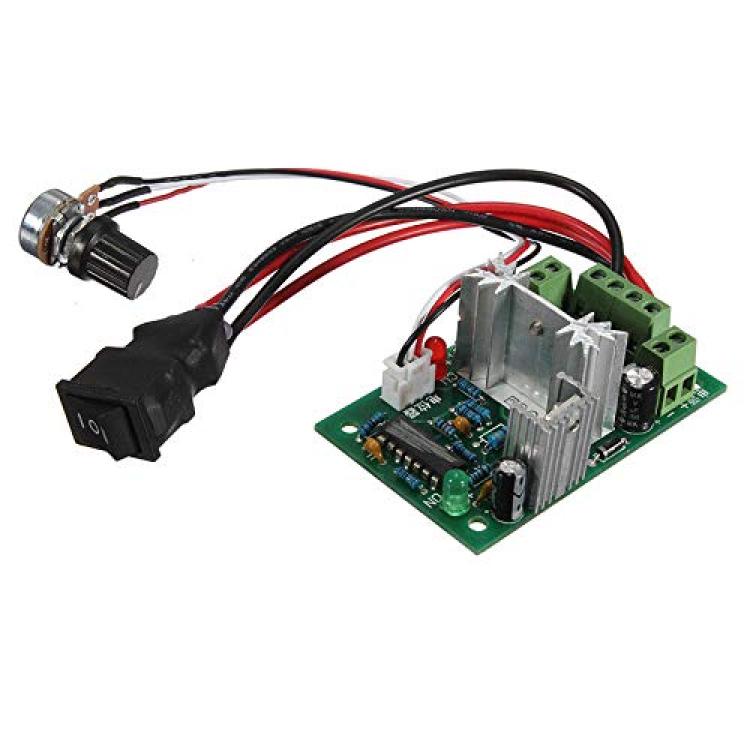

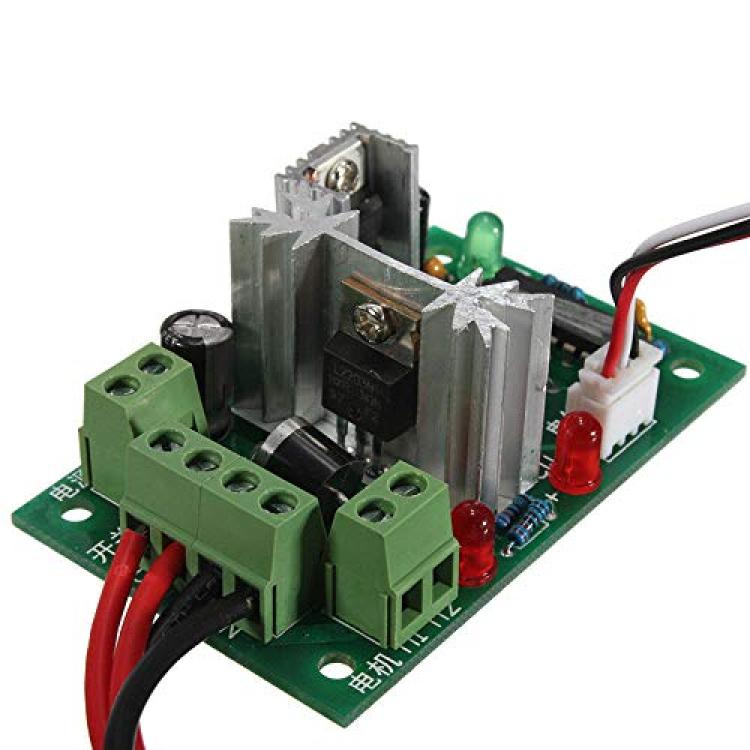

New Durable DC Motor Speed Switch Controller 10V 12V 24V Control Reversible PWM Regulator 3A
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*Test before shipping.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
Description
Specification?
Brand new, Unused, High quality
Material: Plastic, metal
High efficiency, high torque, low heat generating
Control the speed of a DC motor with this controller
With reverse polarity protection, high current protection
Input: 10V-30V
Output: Max 120W?
When more than 24V
?
PWM range: 5%-95%
Frequency: 500Hz
Current: Max 4A (Recommend you to use in 3A)
With potentiometer
With reversible switch
All tested before shipment
Operating Instruction:
1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a
DC power supply(the DC supply voltage range is more than 6V and less than 30V). Warning: do not reverse the positive
and negative terminals of DC power source, otherwise regulator may be damaged.
2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent
with the expectative one, you can adjust the sequence of lines or switch position to change the direction.
3. Adjust the switch. Positive inversion switch is used to control the motor speed direction.
When the switch is located on the zero position, the motor stops rotating.
4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output ratio of the regulator, then motor speed change.
Package Included:
1 X DC Motor Speed Controller
