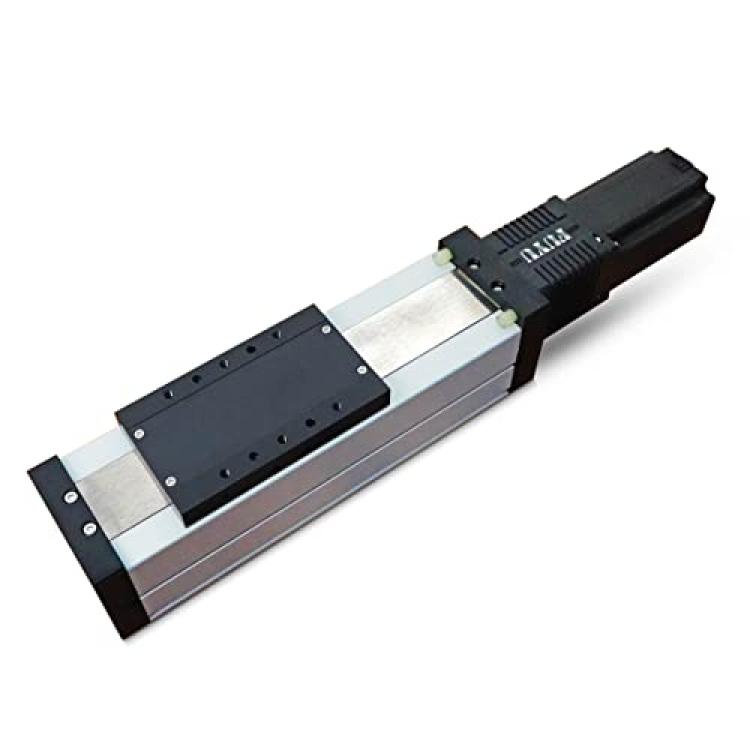

FUYU FSL80 Heavy Load Linear Guide Motion Rail Ball Screw CNC Linear Stage Actuator Slide Table Motorized Nema24 Stepper Motor[400mm Stroke]
Availability: Pre-Order, Inquiry Price
About this product
*Nema24 stepper motor provide enough power and easy to be controlled by controller,accept customization for stepper motor and slider
*Products stroke range from 100mm to 1500mm,aluminum made panel ensure horizontal loading capacity up to 60kgs，vertical loading capacity up to 20kgs
*M6 screws at the baseboard and sideway make easy installnation and convenient to install additional accessories
*Fully aluminum structure and and G1610 ballscrew with steel belt offer excellent strength,
*Silver polished aluminum avoid get rusty,complete sealed structure realized dustproof and IP65 waterproof for rail guide,suitable for working at harsh environment
Description

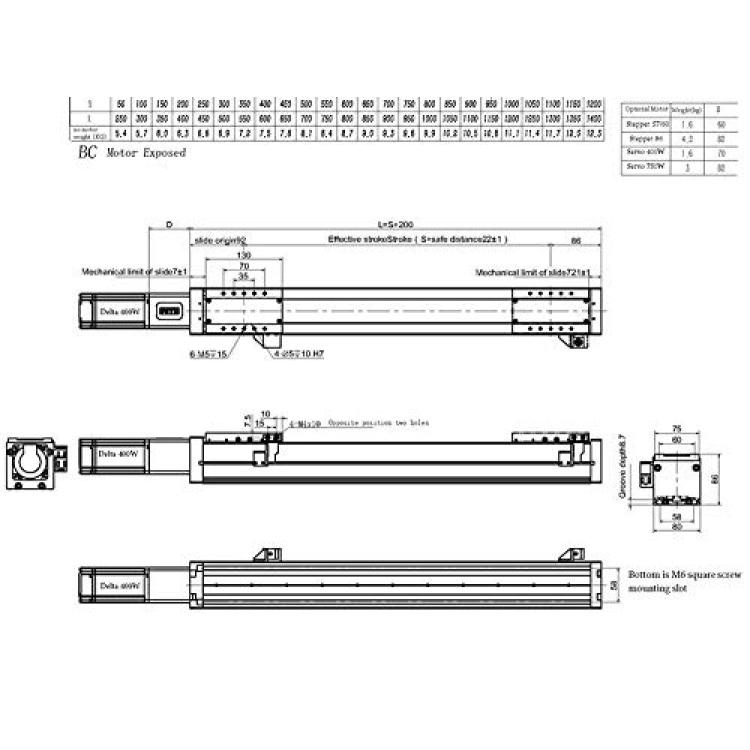

Effective Stroke: 400mm
Total Length: 772mm
Tatal Height: 80mm
Slide Width: 80mm
Maximum Horizontal Load: 40kg
Maximum Vertical Load: 20kgs
Max Horizontal Speed: 210mm/s[max loading]
Max Vertical Speed: 60mm/s[max loading]
Max Speed: 220mm/s[No loading]
Repeat Position Accurancy: ±0.03mm
Ball Screw Model: G1610
Ball Screw Accuracy Class: C7
FLS80 Series Linear Guide with Nema24 Stepper Motor
ASIN: B0784VZ199 100mm stroke
ASIN: B077T4NYPC 200mm stroke
ASIN: B077T3N8TJ 300mm stroke
ASIN: B077T494BV 400mm stroke
ASIN: B077T18BNY 500mm stroke
ASIN: B077T1BKLZ 600mm stroke
ASIN: B078C5CT8Q 700mm stroke
ASIN: B0784VZMW2 800mm stroke
ASIN: B077SQTYGJ 900mm stroke
ASIN: B077T4K5XS 1000mm stroke
ASIN: B0784VRFDG 1100mm stroke
ASIN: B077T181PN 1200mm stroke
ASIN: B077SQTSNG 1300mm stroke
ASIN: B077T4K58V 1400mm stroke
ASIN: B077T4MN66 1500mm stroke
Please contact us when you need suggestions on choose this kind of item
