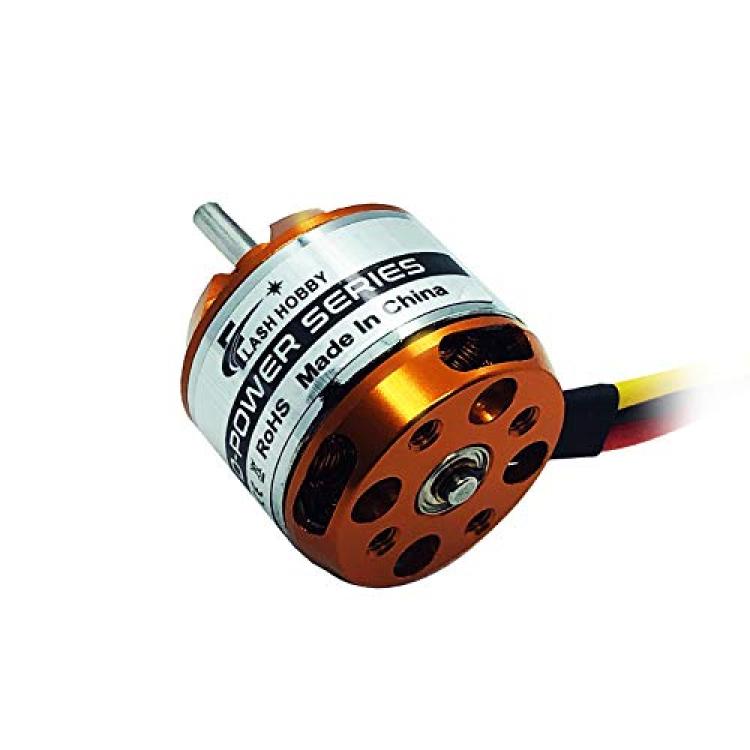

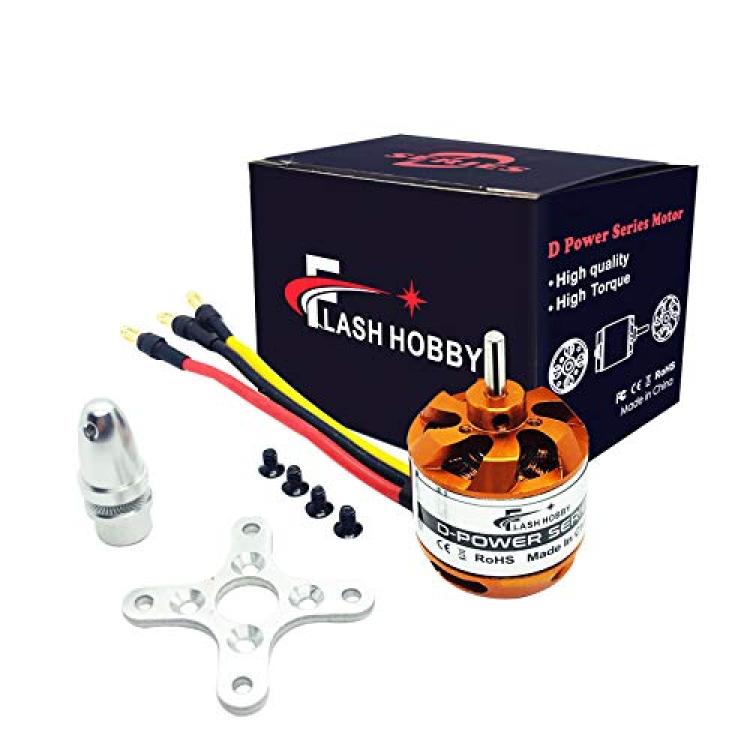

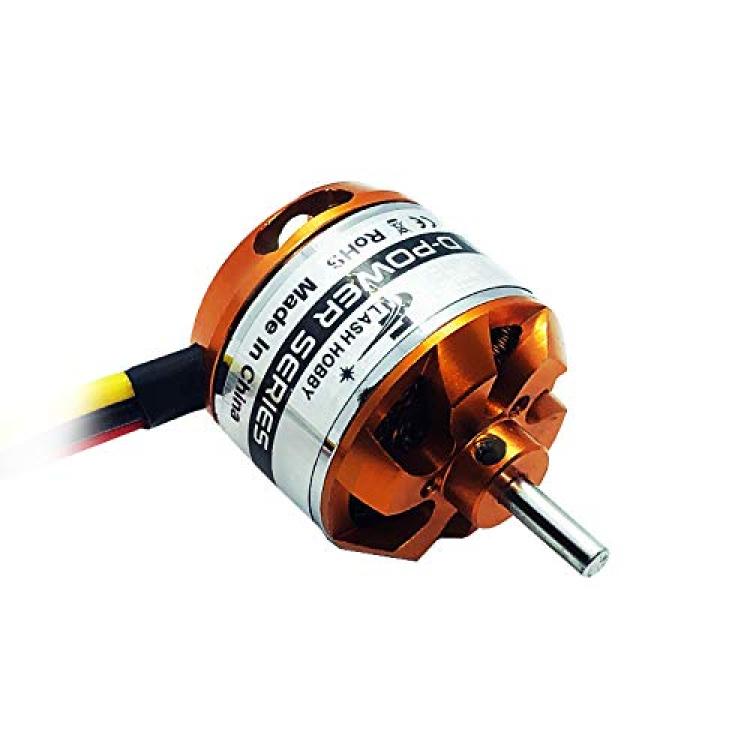

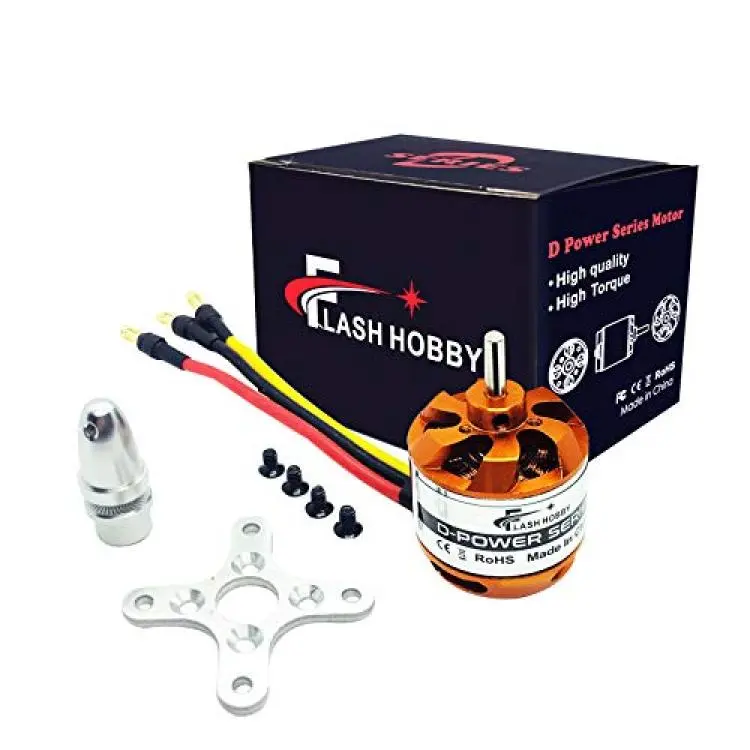

FLASH HOBBY D2826 Brushless Motor 2200KV Outrunner Motor for RC Aircraft Plane Multicopter Drone Fixed Wing Helicopter
Availability: Pre-Order, Inquiry Price
About this product
*Featuring 12N14P high torque design, strong thrust, more powerful than other ordinary brushless motors, high working efficiency
*Precisely balanced rotor is stable with high speed, ensure the motor high-speed running without shake and has the best reliability and the largest RPM
*High purity copper windings maximize efficiency, 42SH magnets and NMB bearing, good insulation and heat resistance
*Motor KV 2200KV, shaft size 3.17 x 41mm, motor mount 16 x 19mm (M3*4), which is compatible with 7~8 inch propeller
*The motor battery is 2~3S lipo, which is widely use in RC aircraft, drone, fixed wing, helicopter, plane, multicopter and so on
Description
Specification:
Battery: 2-3S Lipo
Motor Weight:50g
Motor Size: 27.7*26mm
Shaft Size: 3.17*41mm
Motor Mount: 16*19mm(M3*4)
D2826-2200KV
Max pull : 960g
Volts: DC7.4~11.10V
Suggested ESC: 30A~40A
Maximum Power: 342W
Suggested Prop: 7~8 inch prop
D2826-1400KV
Max pull : 780g
Volts: DC7.4~11.10V
Suggested ESC: 30A~40A
Maximum Power: 205W
Suggested Prop: 7~9 inch prop
D2826-1000KV
Max pull: 660g
Volts: DC7.4~11.10V
Suggested ESC: 30A~40A
Maximum Power: 150W
Suggested Prop: 10~11 inch prop
D2826-930KV
Max pull: 645g
Volts: DC7.4~11.10V
Suggested ESC: 30A~40A
Maximum Power: 130W
Suggested Prop: 11~12 inch prop
