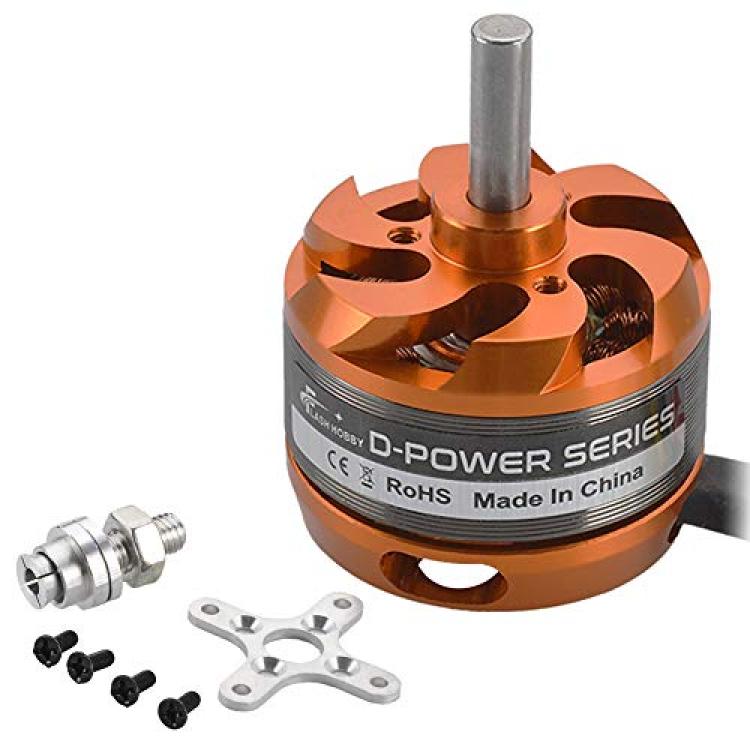

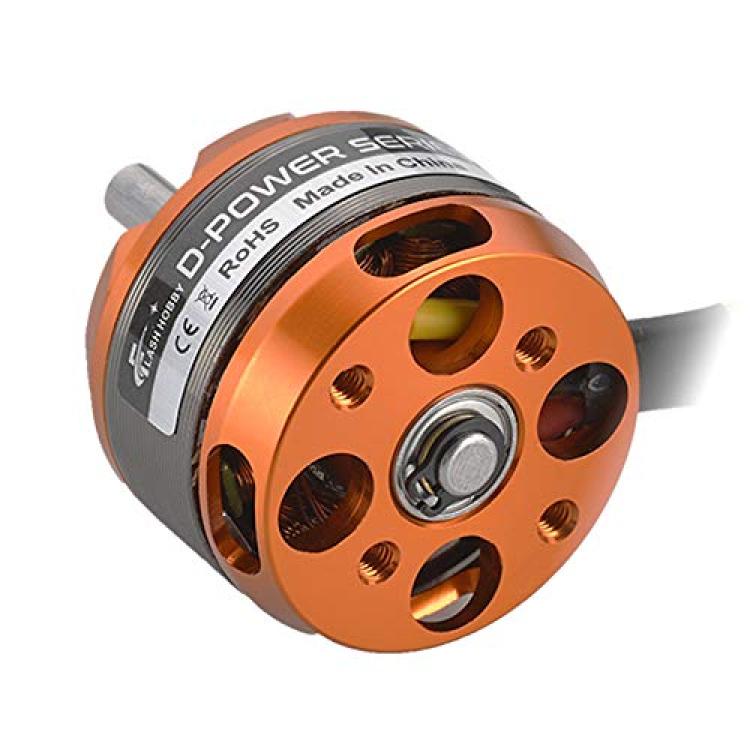

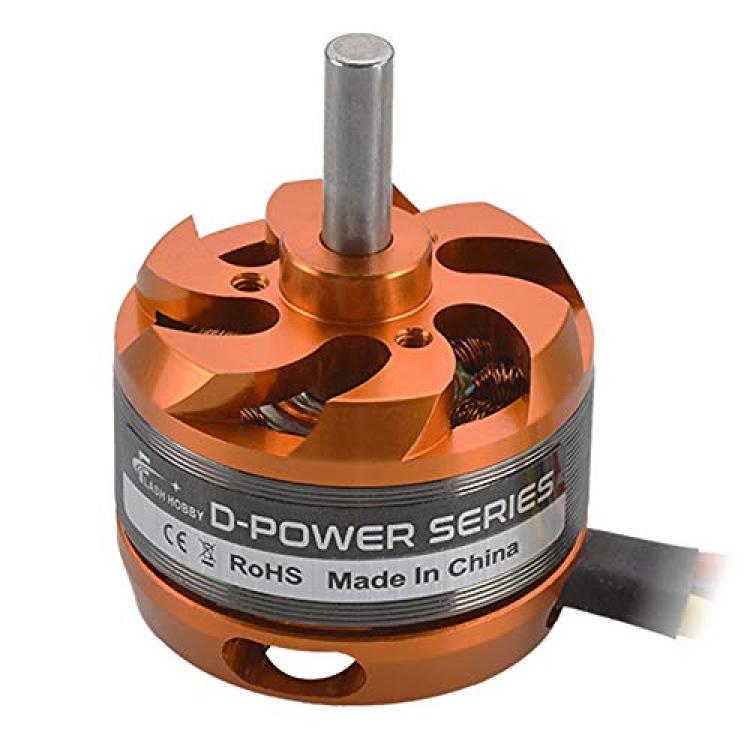

FLASH HOBBY D3530 1100KV Brushless Motor Fixed Wing Outrunner Motor for Mini Multicopters RC Plane Helicopter Multirotor Quadcopter
Availability: Pre-Order, Inquiry Price
About this product
*D3530 series motor is upgraded with features fixed wing multirotors absolutely need. The motor is lightweight, low noise and higher thrust
*FLASH HOBBY brushless motor can be used for 8 inch prop, which is suitable for Mini Multicopters, RC Plane, Helicopter, Multirotor Quadcopter and fixed wing

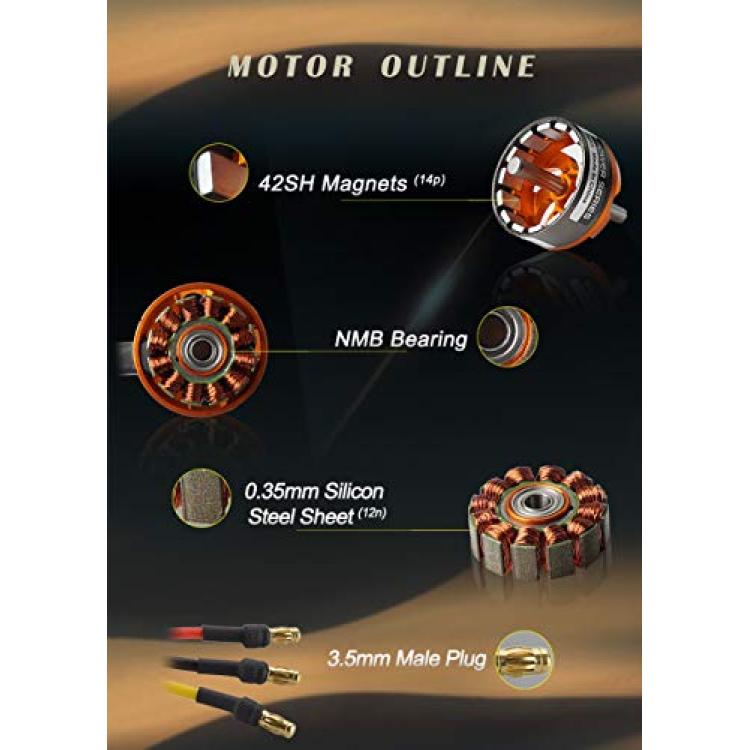

*By adopting 42SH curved magnets and NMB bearing, the pulling force between the stator and magnet is greatly increased. The max pull can be up to 1180g
*Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability and maximum RPM
*High torque motor size is 35 x 30mm, and the shaft size is 5 x 47.5mm, suggest ESC 30A~70A. High purity copper windings maximizes efficiency
Description
Specification:
Battery: 2-4s Lipo
Motor Weight: 74g

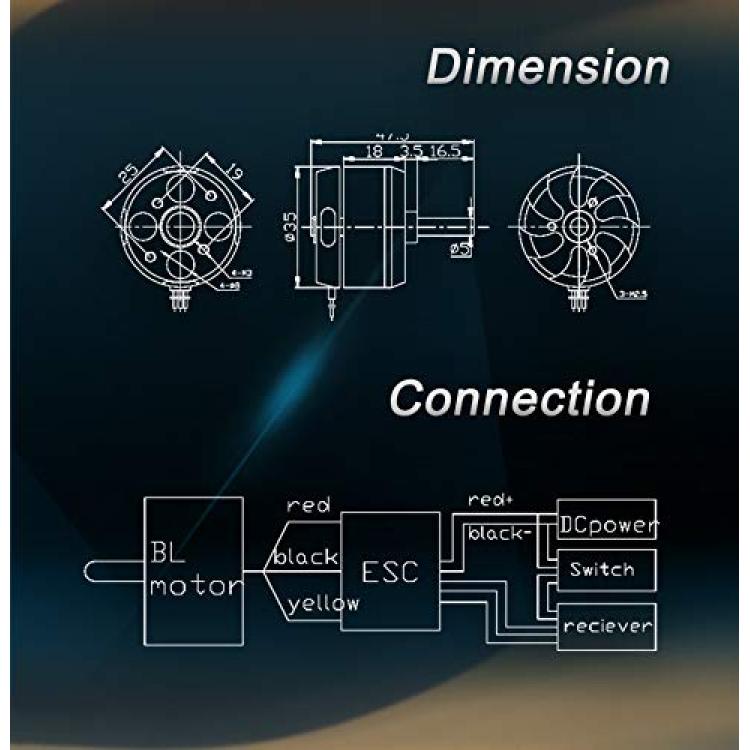

Motor Size:35*30mm
Shaft Size:5.0*47.5mm
Motor Mount: 16*19mm(M3*4)
Working Temperature Range : -0°C~+80°C
Control Method: Use ESC And Adjust PWM signal For Control, PWM Adjustment Range 900-2100Us
D3530-1400KV Motor
Max pull : 1180g
Volts : DC7.4~15.0V
Suggested ESC: 30A~70A
Maximum Power : 446W
suggested Prop: 7 inch prop
D3530-1100KV Motor
Max pull : 1100g
volts : DC7.4~15.0V
suggested ESC:30A~70A
Maximum Power : 313W
suggested Prop: 8 inch prop
