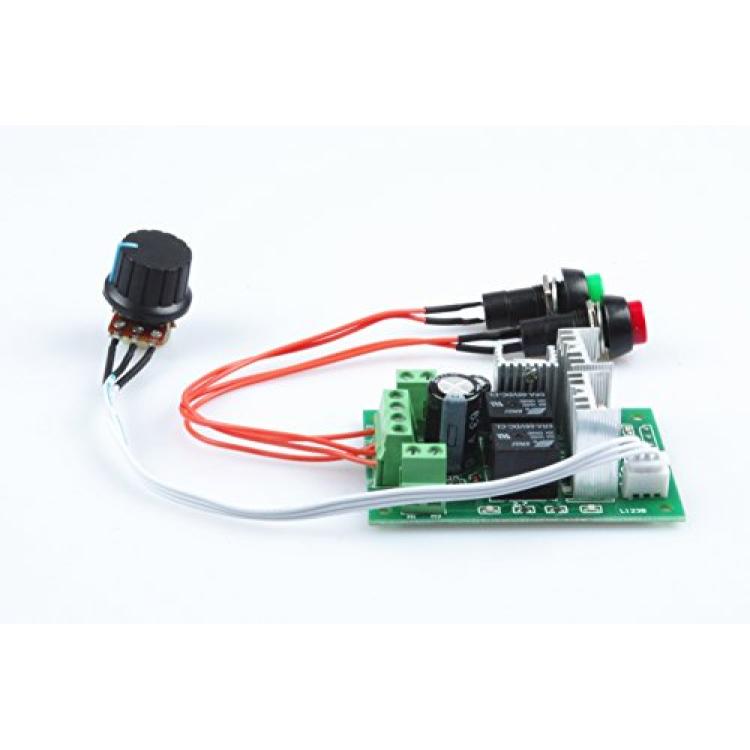

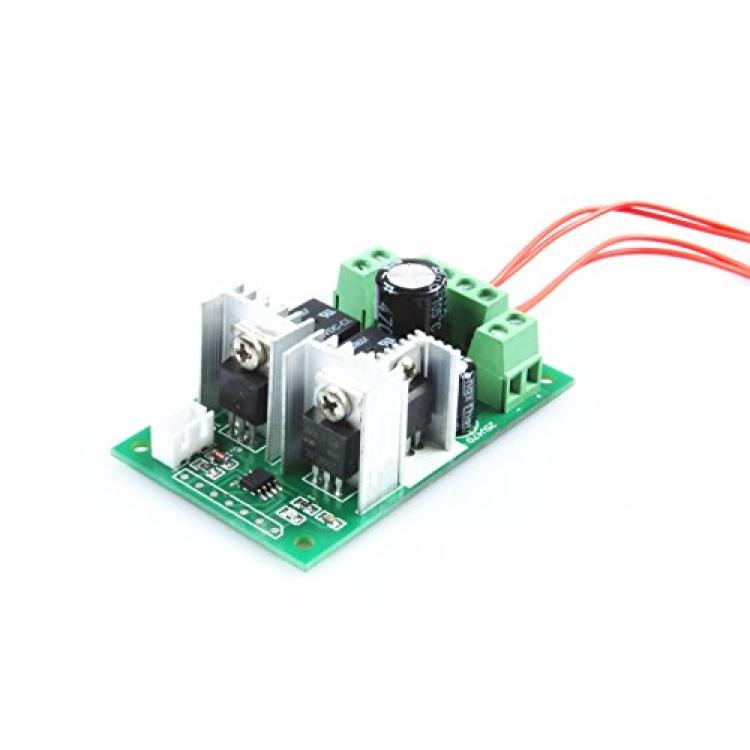

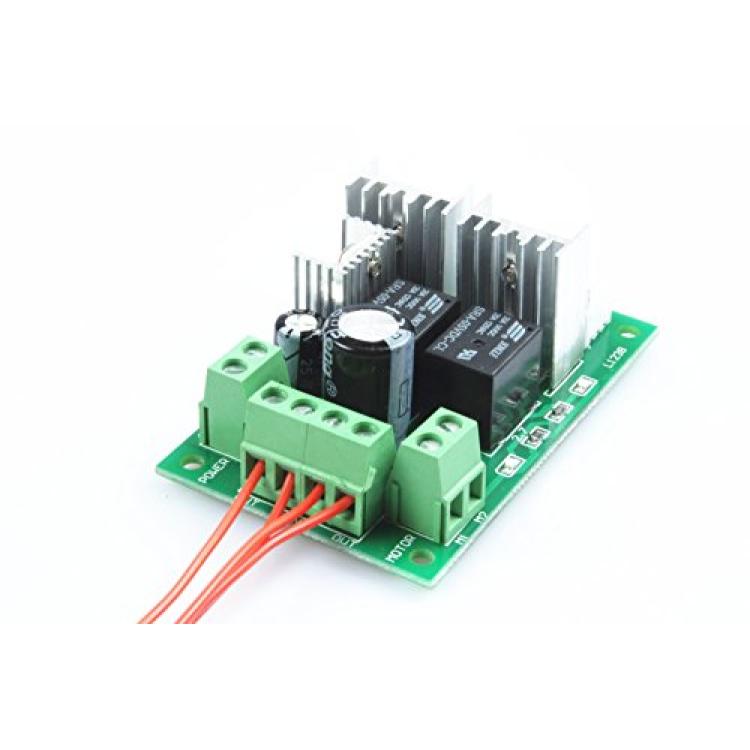

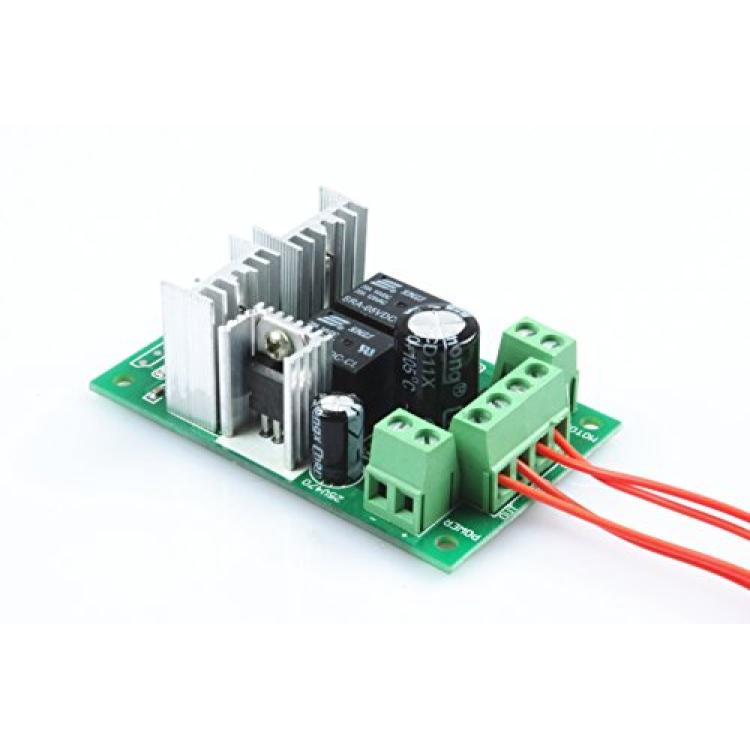

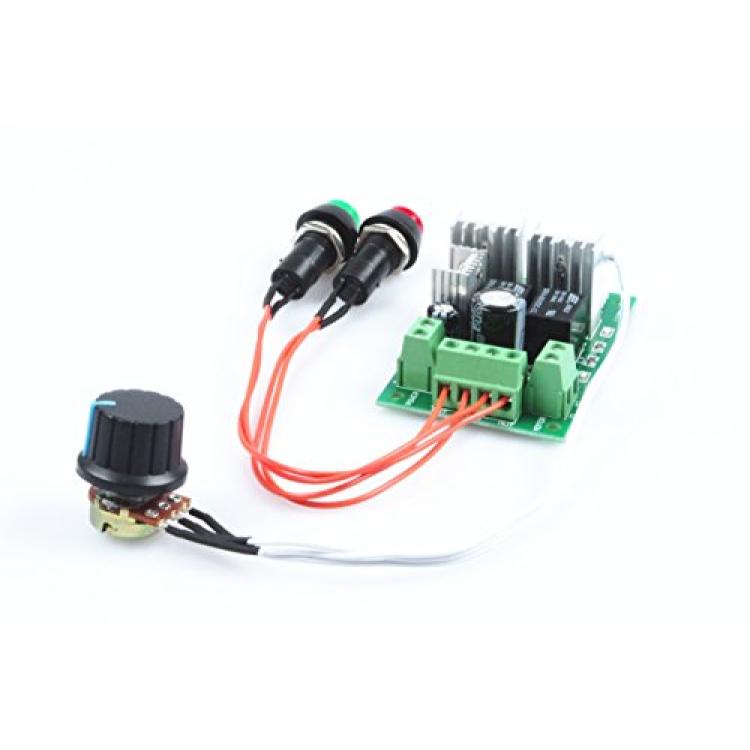

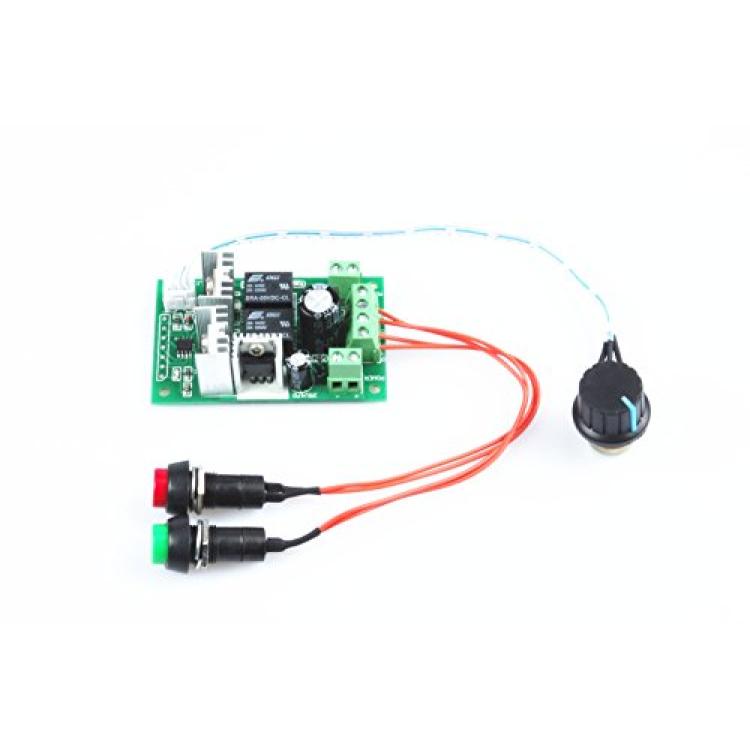

KNACRO PWM DC Motor Controller SRA-05VDC-CL10A 6-30V 6V 12V 24V 10A Electric Pusher Motor Speed Controller Forward/Reverse Maximum Power 200W
Availability: Pre-Order, Inquiry Price
About this product
*Input voltage: DC6-30V.Output voltage: Load Linear.
*Input Current: require large than the motor operating current.Output Current: determine load size.Continuous current: 8A within.
*Maximum power: 200W.Quiescent Current: 0.01ma.
*Speed type: modulated current.Speed mode: ON OFF linear potentiometer 270 degrees.Speed range: 0-100%.
*Operating frequency: 15KHZ.Knob hole: 7MM.
Description
Input voltage: DC 6-30V.Output voltage: Load Linear.
Input Current: require large than the motor operating current.Output Current: determine load size.Continuous current: 8A within.
Maximum power: 200W.Quiescent Current: 0.01ma.
Speed type: modulated current.Speed mode: ON \ OFF linear potentiometer 270 degrees.Speed range: 0-100%.
Operating frequency: 15KHZ.Knob hole: 7MM.
Input voltage: DC6-30V.
Output voltage: Load Linear.
Input Current: require large than the motor operating current.
Output Current: determine load size.
Continuous current: 8A within.
Maximum power: 200W.
Quiescent Current: 0.01ma.
Speed type: modulated current.

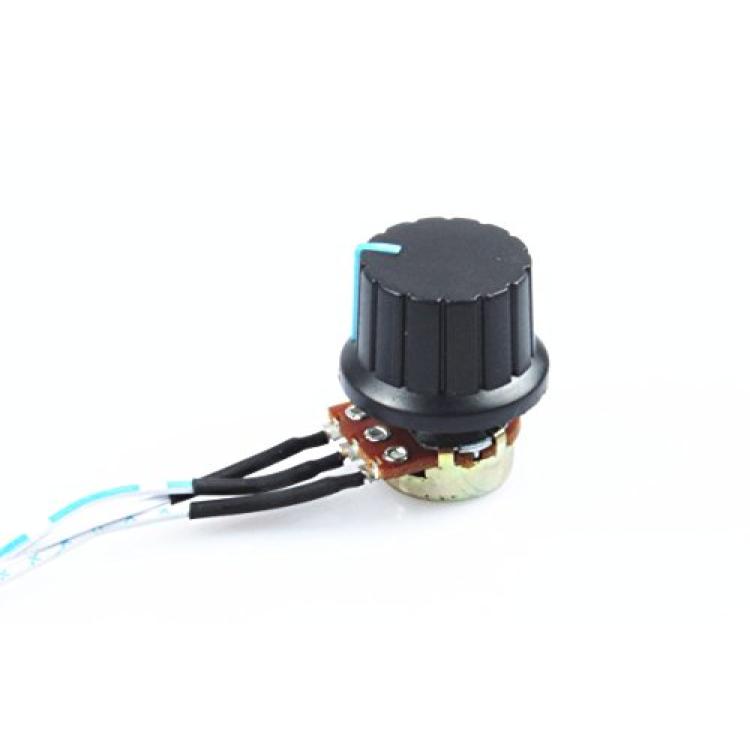

Speed mode: ON \ OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 15KHZ.
Knob hole: 7MM.
Body Set Size: 74 * 47 * 28mm(L*W*H).
Weight: 80g.
